DeepCool LT360 Vision ARGB Review: Large Screen with Silent Cooling
DeepCool has released a new cooler in the liquid cooling category. It is named LT360 Vision ARGB. The most striking feature is a large display screen measuring 4.5”. Clearly, DeepCool is following the industry trend where many manufacturers have released not one but multiple liquid coolers with a large display screen. Even some have released curved screens, but DeepCool has got you covered on that by providing a 90° rotation of the screen so that you always get to see what is on the screen.
This cooler also features DeepCool’s sixth-generation pump, which uses a 3-phase, 6-slot, 4-pole motor with FOC control, delivering smoother and more efficient operation across a PWM-adjustable range of 2,500 to 3,400 RPM. DeepCool has also addressed the cold plate design with fine-tuned micro-fin geometry to maximize the heat transfer.
Another key feature is the introduction of new fans with follows closed-wheel design for 360° ARGB lighting, which looks good in person. These fans are rated for up to 2500 RPM speed, generating 75.33 CFM airflow at an air pressure of 2.41 mmAq with an impressive noise level of ≤33.66 dB(A).
This cooler requires DeepCreative software (latest version), providing a user-friendly interface and control options, including the ARGB lighting. This cooler is compatible with Intel LGA1700/1851 and AMD AM4/AM5 sockets. It has an MSRP of USD 139.99. It comes with a 5-year warranty.
Specifications
Packaging and Unboxing

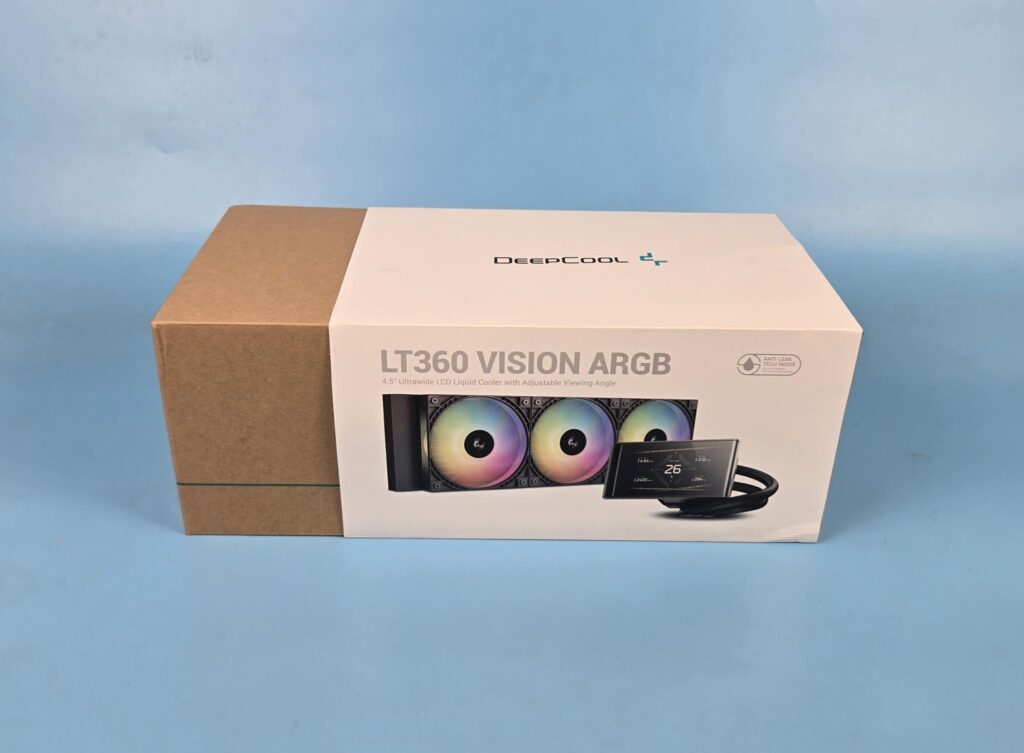

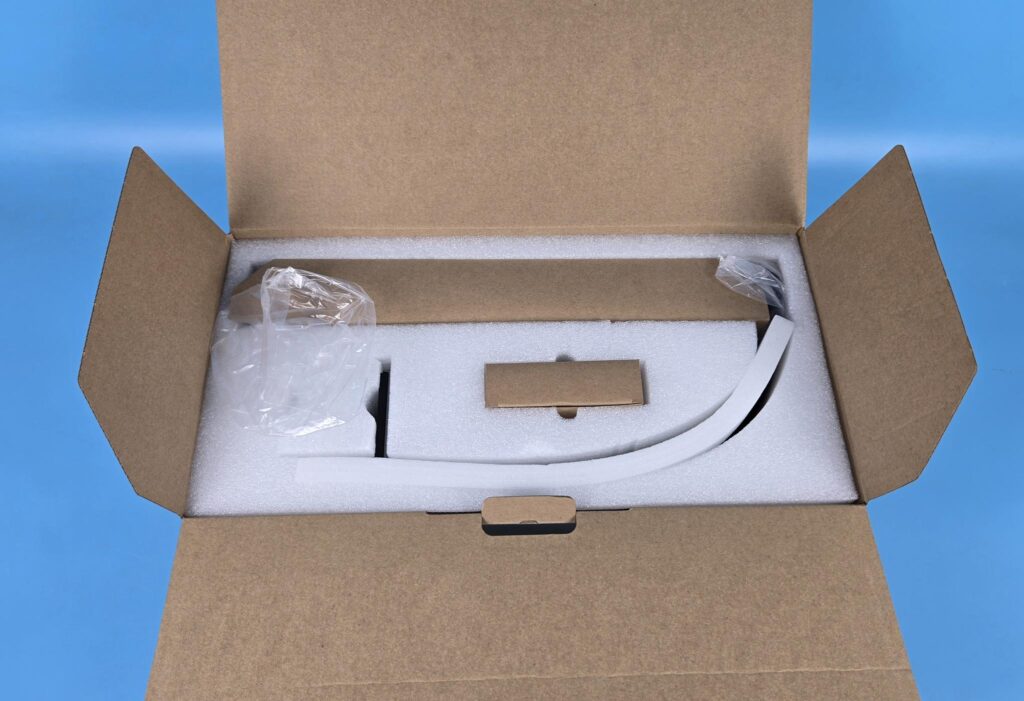

The cooler is shipped inside a cardboard box with a leaflet or cover around the box. This is the standard DeepCool design or theme. The cooler and accessories are placed inside the main container.

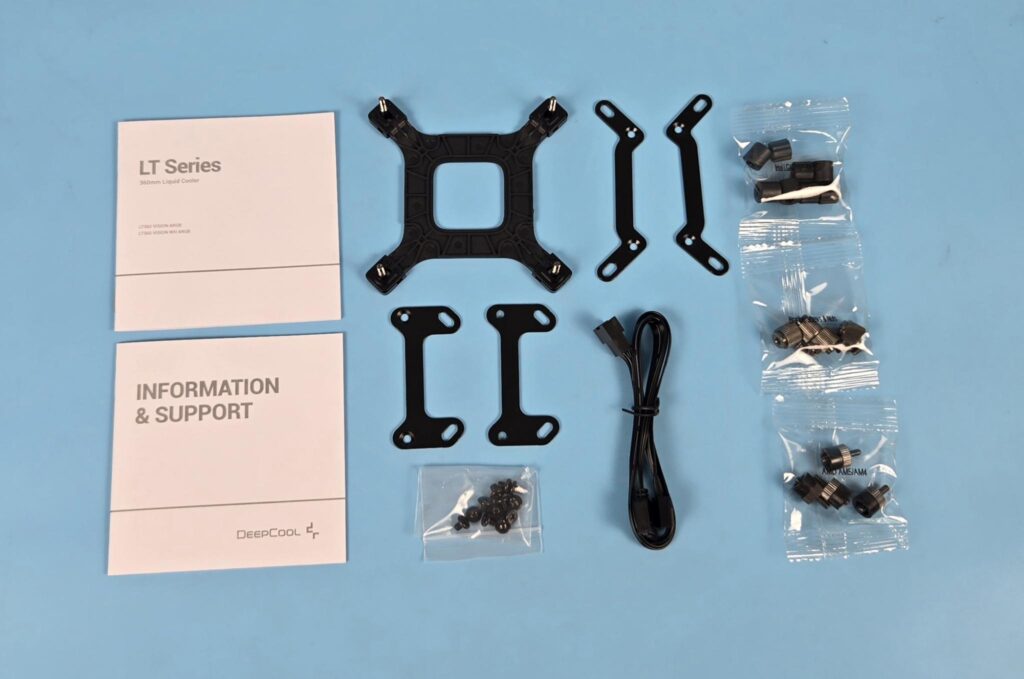

The following are provided:
- 1x Cooler
- 1x Intel Backplate
- 2x Intel Mounting Brackets
- 2xAMD Mounting Brackets
- 4x AMD Standoff Screws
- 4x Nut Screws
- 8x Intel Spacers
- 4x Screws for Mounting Brackets
- 12x Radiator Screws
- 1x Fan Extension Cable
- 1x User Guide
- 1x Information and Support Guide
Closer Look
It is time to take a closer look at each component of the main unit, starting with the radiator.

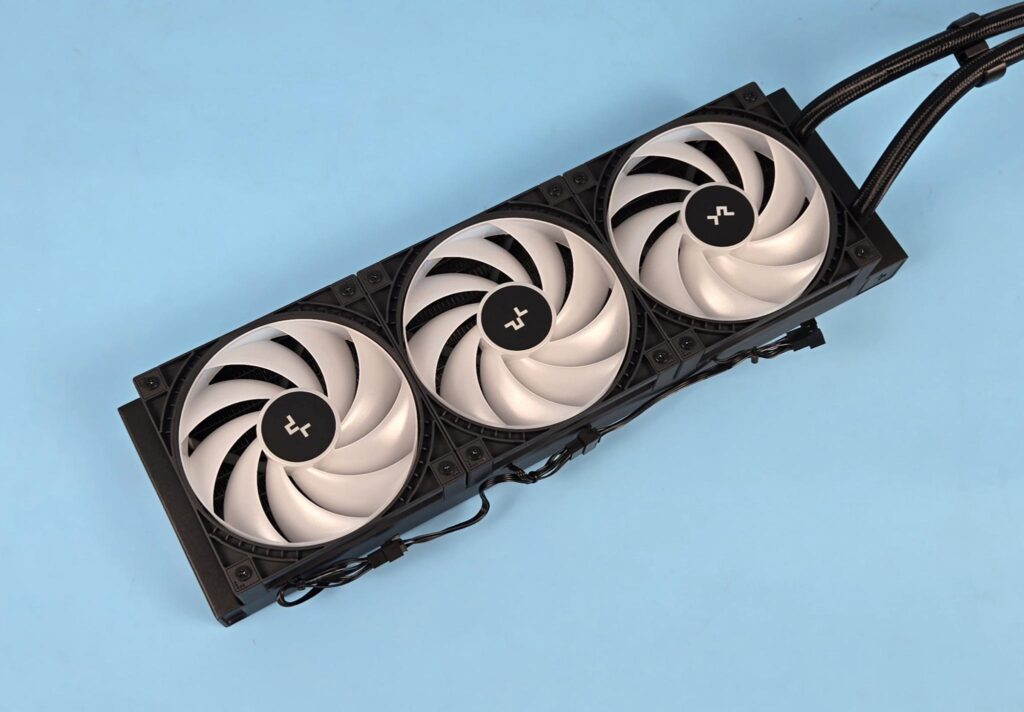

3x high-performance 120mm fans come pre-installed over the radiator. Each fan has a short length power cable that runs on one side of the housing. The connection comes daisy-chained from the factory.

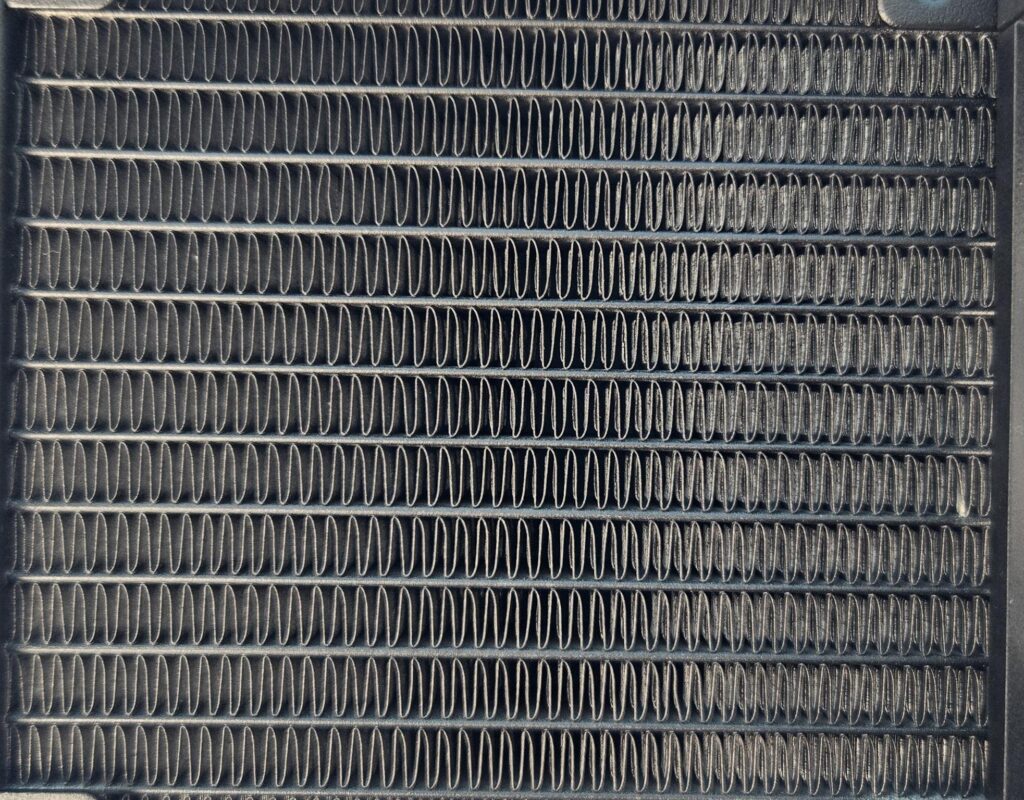

The cooler has an aluminum radiator measuring 402x120x27mm (LxWxH). The cooler has a total height of 52mm with the fans. The fin stack has a 20 FPI count and comprises 12 channels for the coolant flow. There is a 105mm standard gap between any two opposite end mounting holes. I did not see any bent or broken fin.

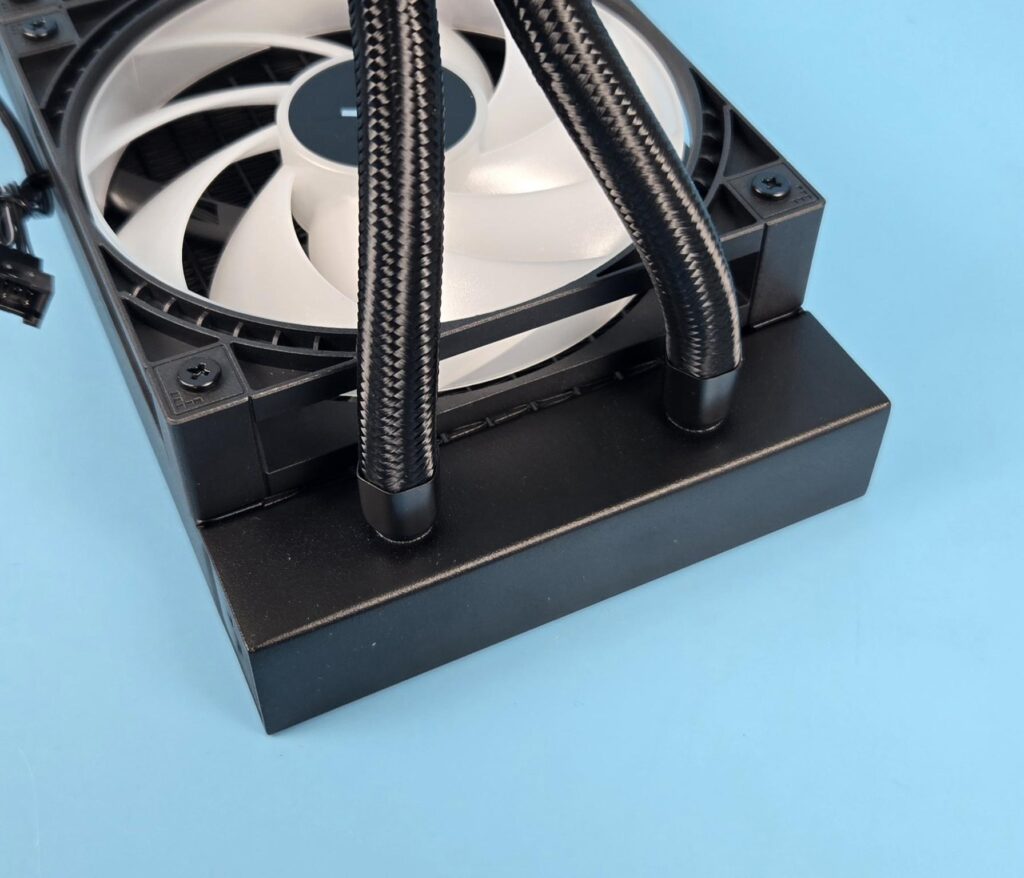

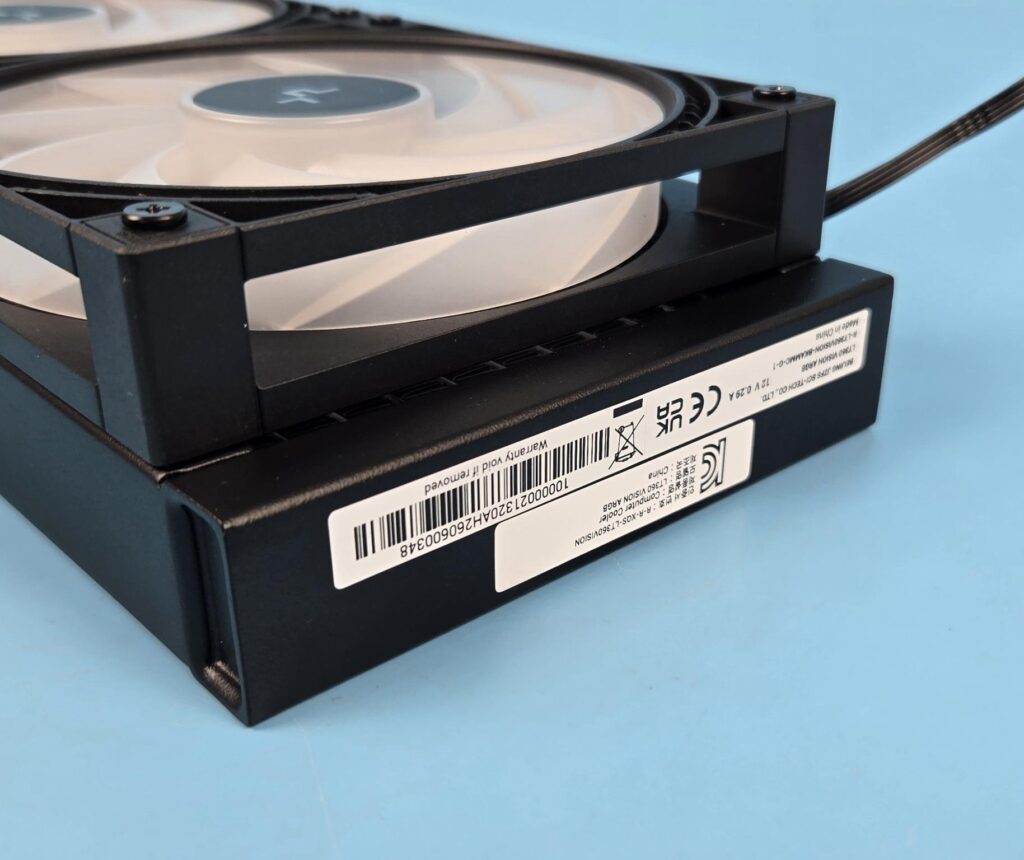

The tube connection on the radiator housing is well concealed using black, rounded clamps. There is a considerable gap between the two tube connections. Warranty and Serial number stickers are on the opposite end of the radiator.

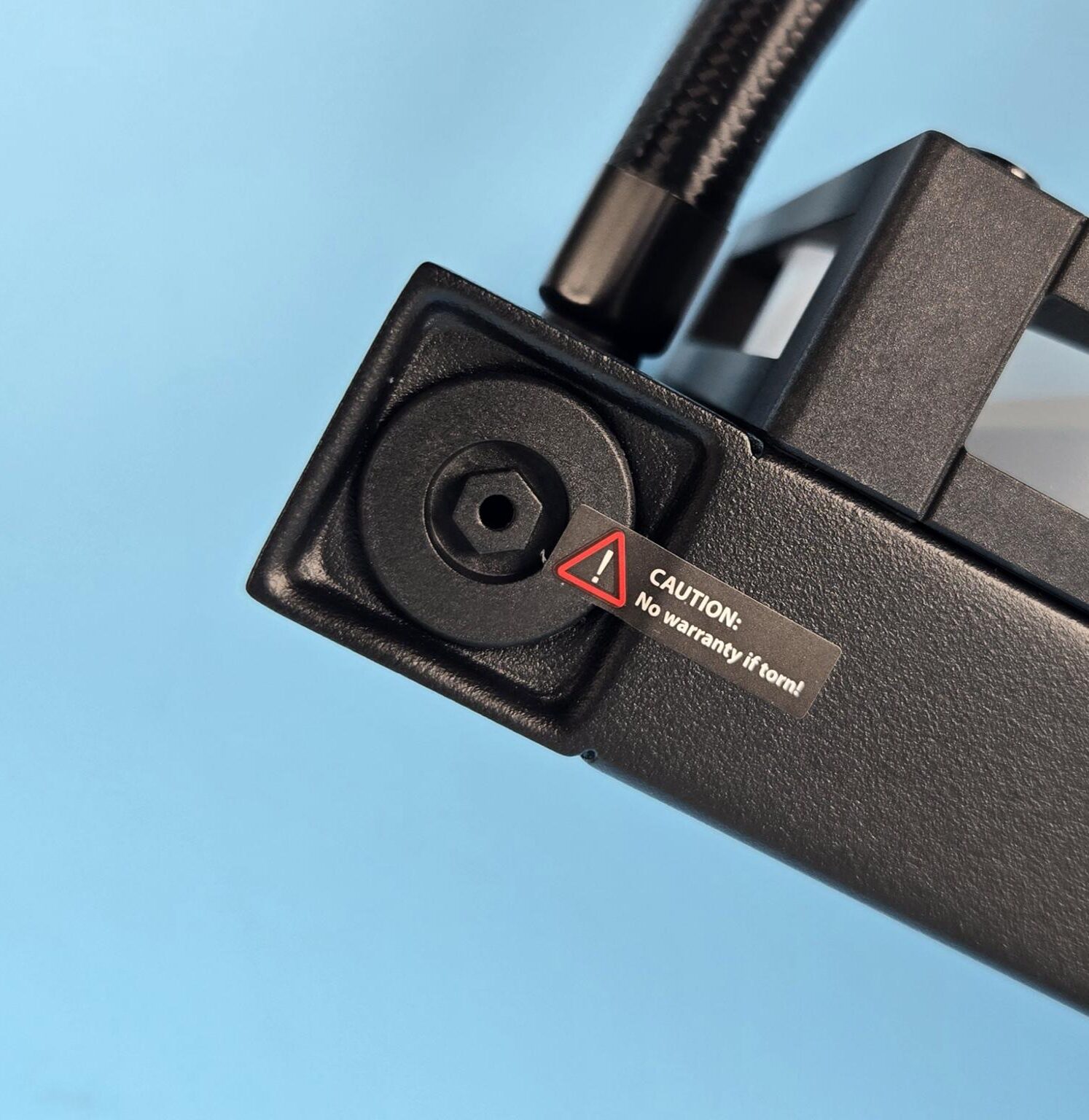

The cooler also features Anti-Leak technology. I have been covering the Anti-Leak technology since its inception. The idea is to provide a mechanism that could effectively release the increased vacuum pressure inside the loop if the case be. Otherwise this increased pressure is likely to result in breakage and leakage.

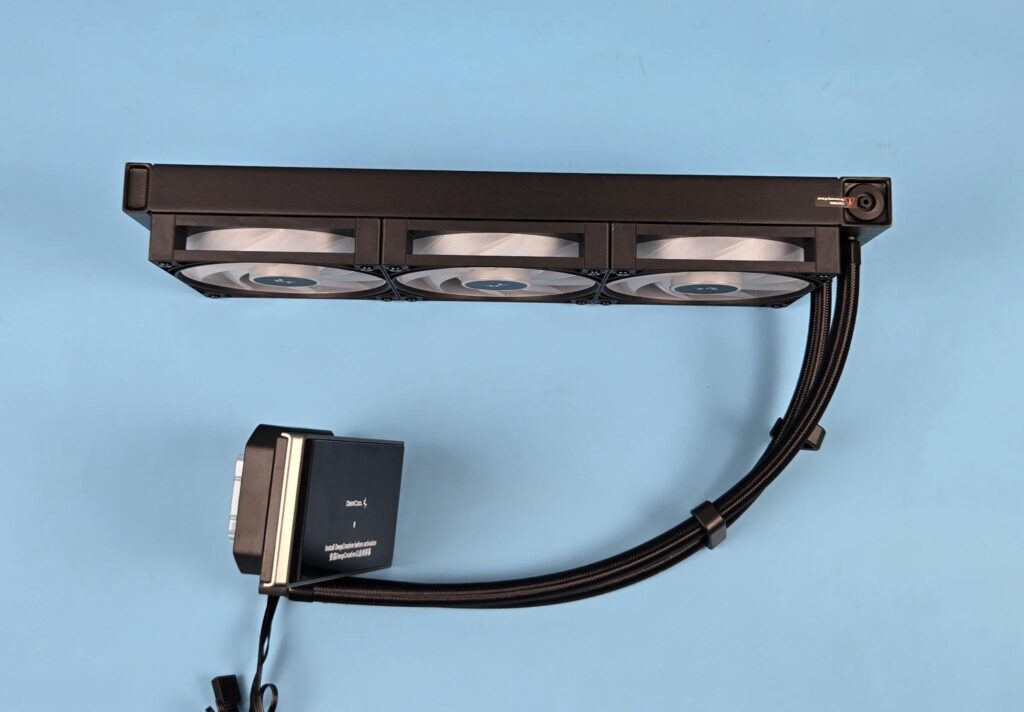

The radiator housing has no branding on the side frame. The rubber tubes are covered under the nylon braided sleeves. These tubes run to approximate to 410mm in length. The tubes come equipped with clips for a clean look.
Block/Pump Head

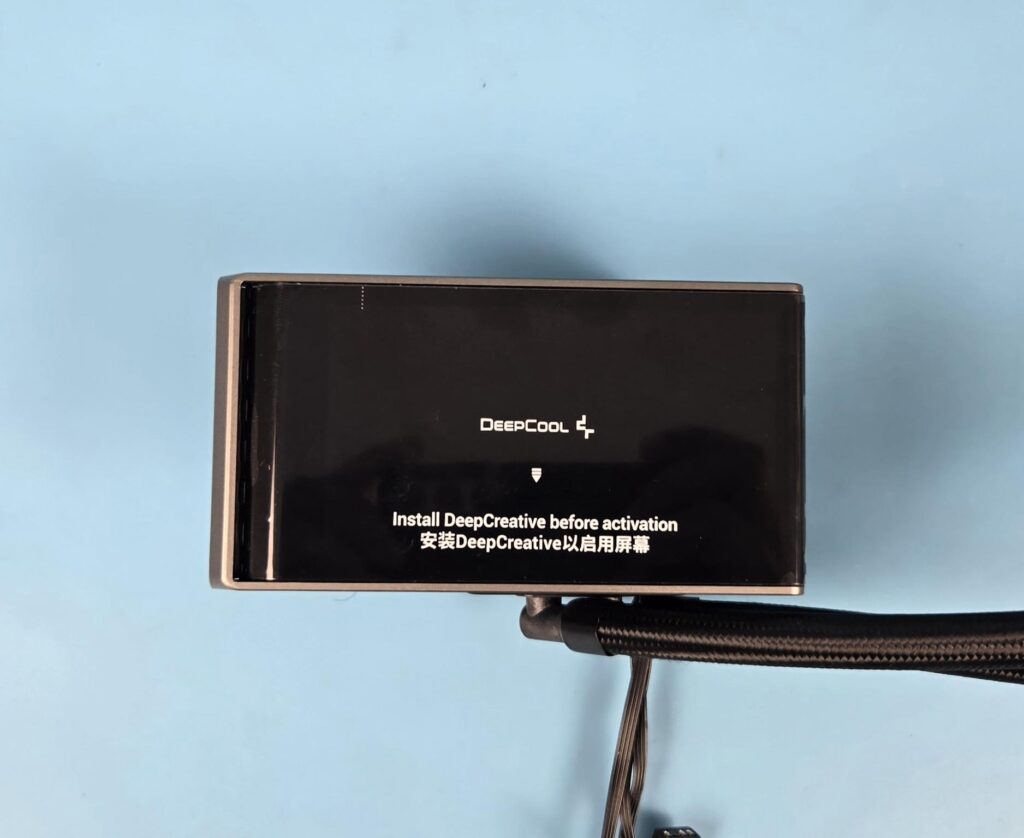

The display screen is not removable, hence it sits over the top of the pump housing. It is a 4.5” IPS LCD type with 854×480 resolution. I was kinda expecting higher resolution. DeepCool has not mentioned the polling rate of the screen. It has a crisp display. The overall dimension of the pump top is 131x89x58mm (LxWxH).

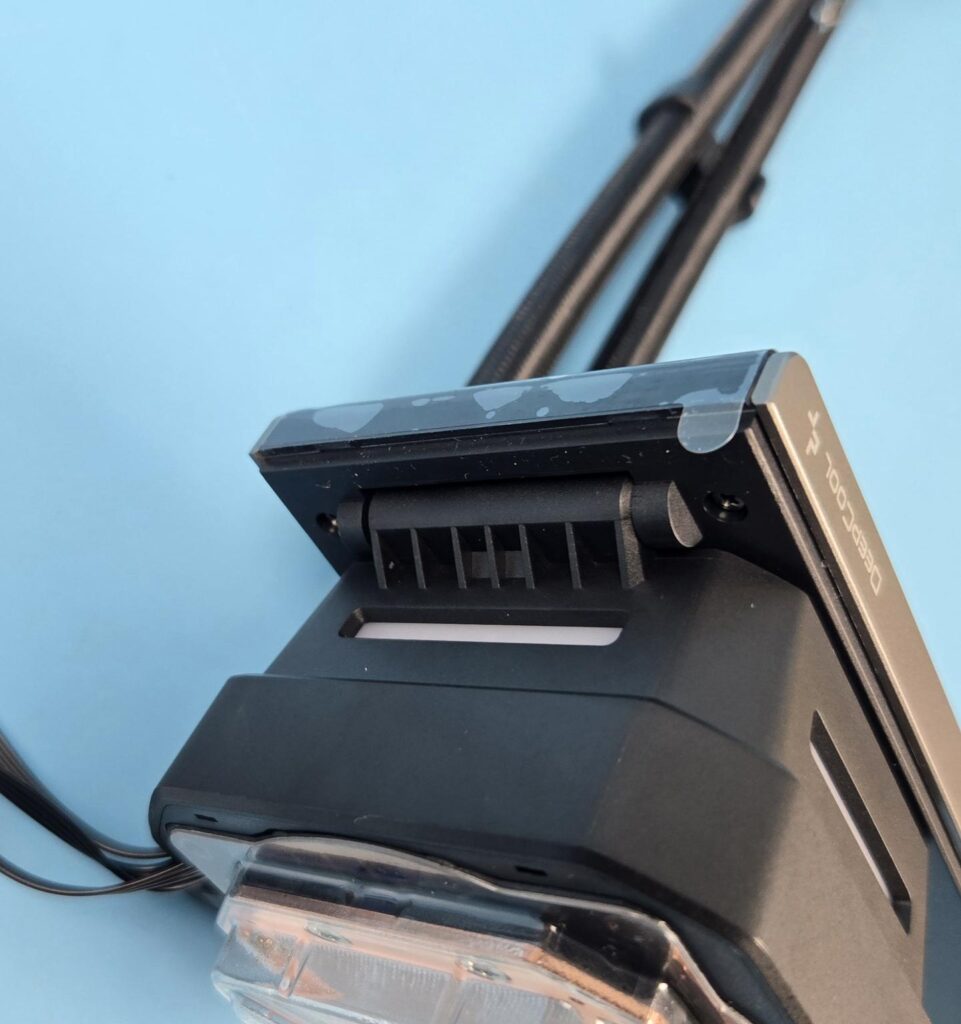

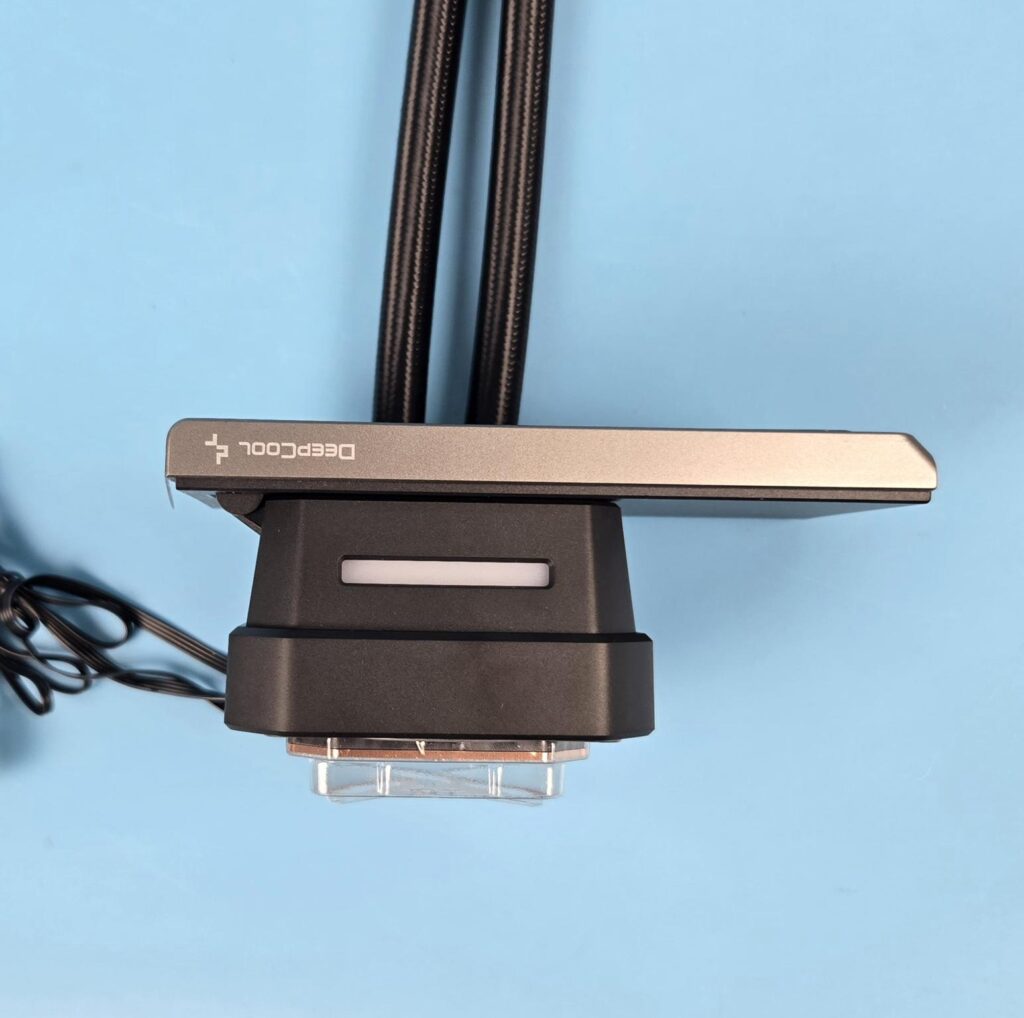

The screen is attached to the pump top, and it is a swivel design, meaning the screen can be opened and tilted or rotated to one side (hinge side).

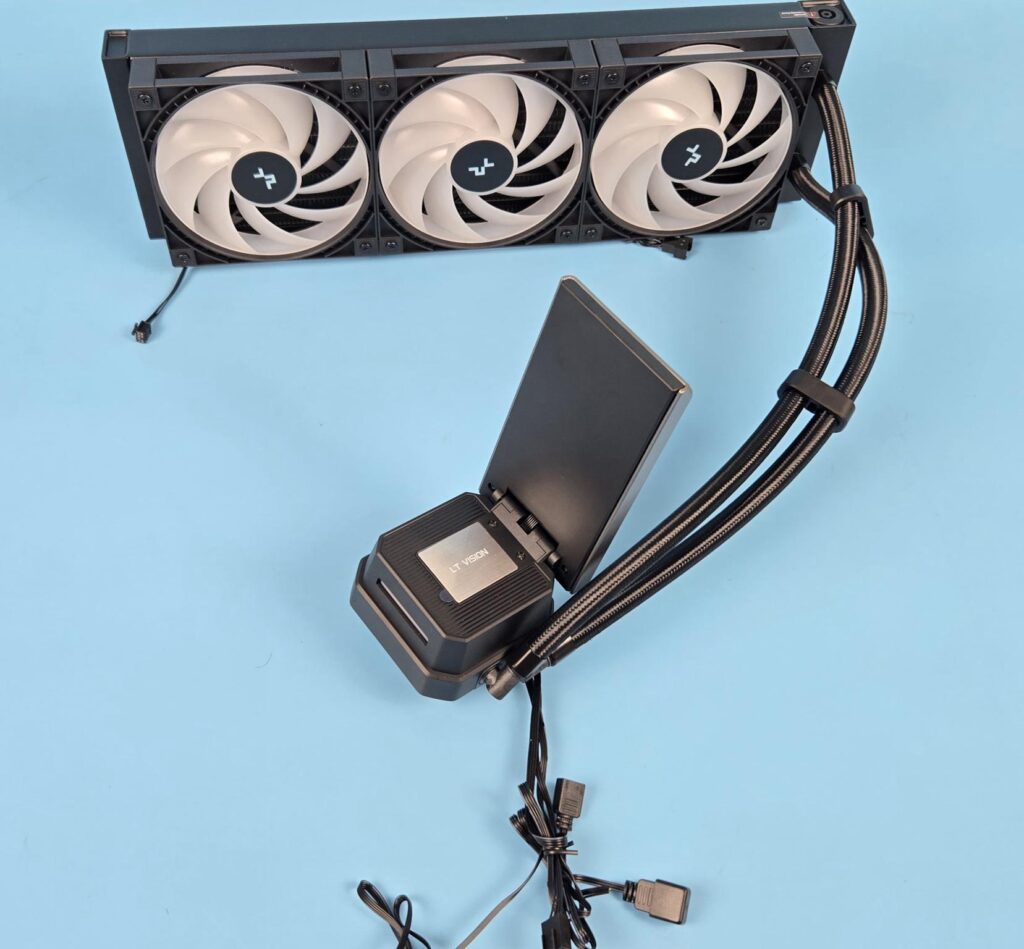

Here, I am showing the screen in full 90° tilt.

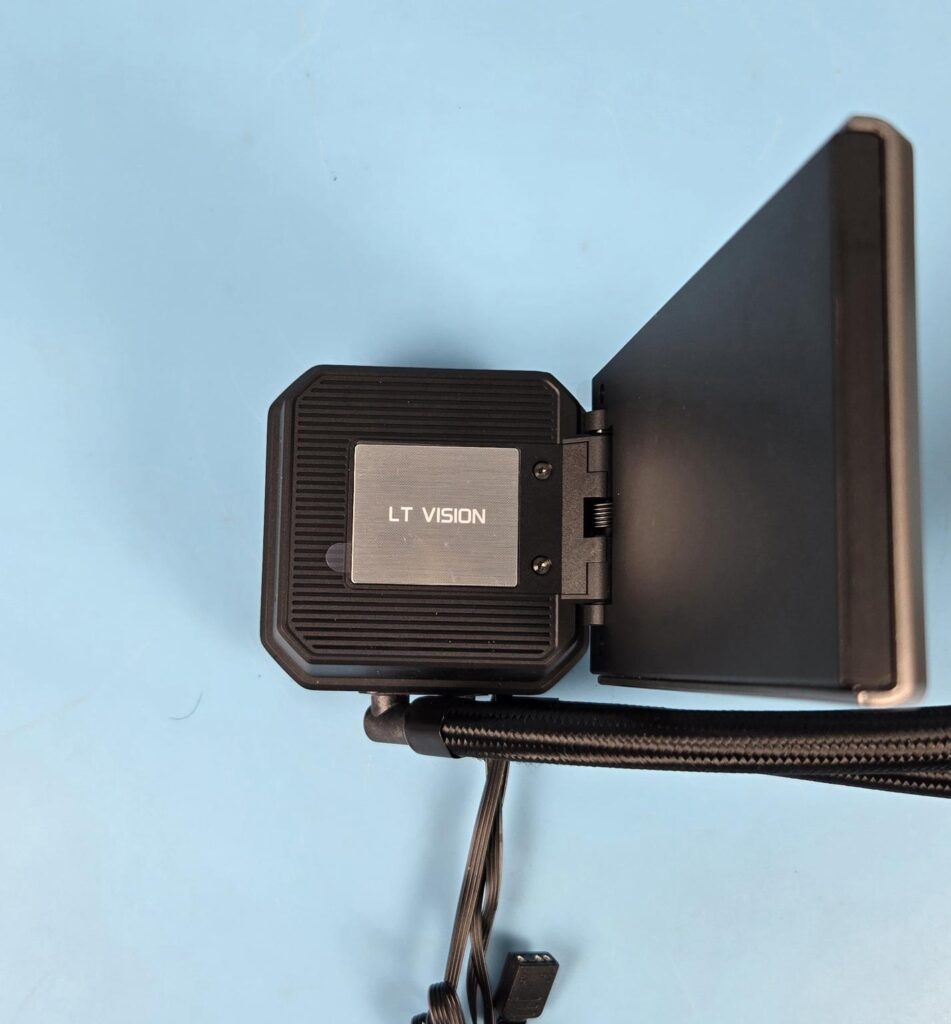

The top of the pump housing has a magnet to which the screen firmly attaches when fully closed. LT Vision text can be seen here. The line pattern is also visible over the pump housing.
The pump housing is made of ABS material, and you can see a diffuser inside the main housing. This diffuser is on three sides except the one with the hinge design. It is ARGB backlit.

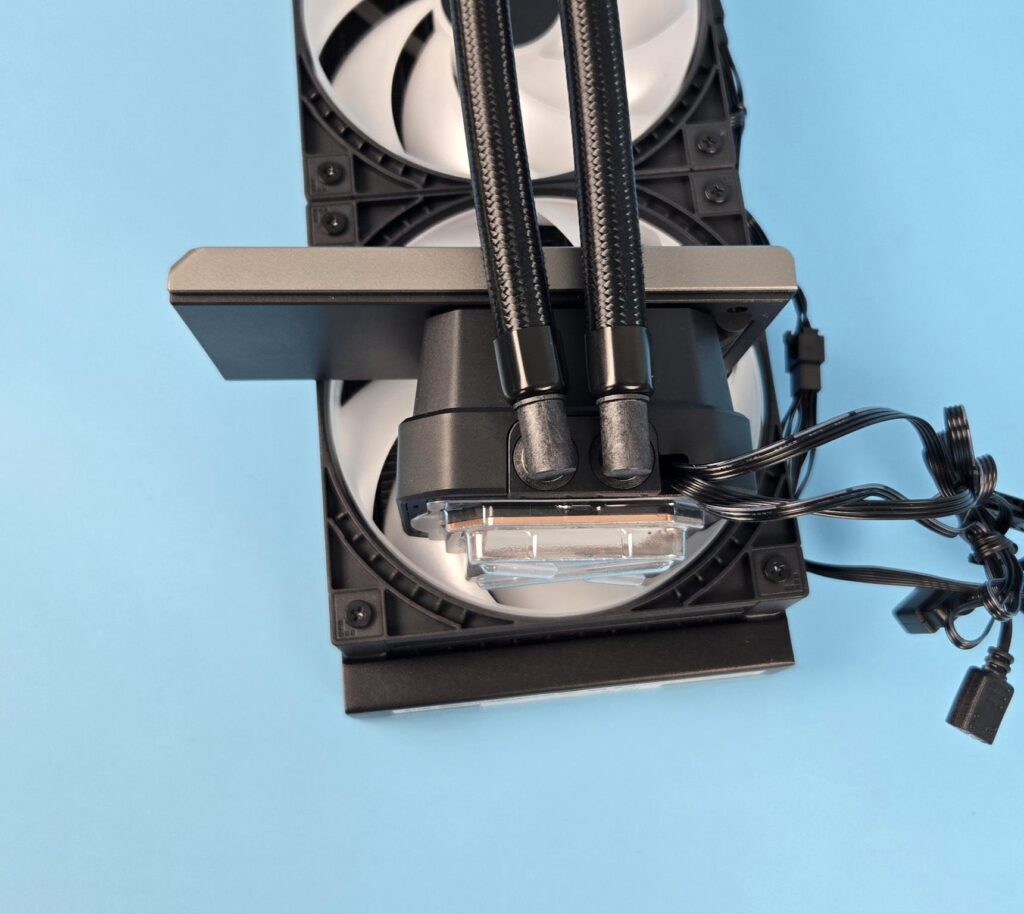

The backside of the pump top has tube connections at 90° and can be rotated sideways. The cables come out from the side of the frame.

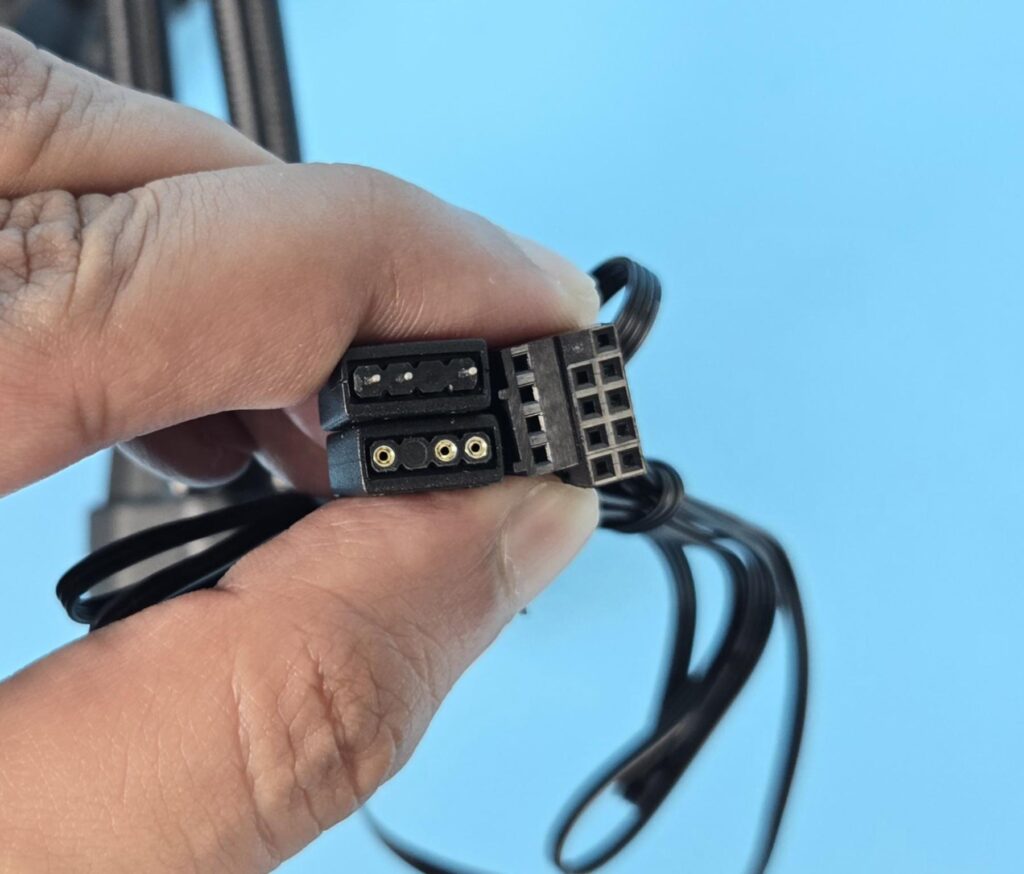

The pump is PWM regulated, which is a wise move. DeepCool has provided standard ARGB connectors (5V, 3-pin) for the ARGB lighting. You can also see a 9-pin USB 2.0 connector. This is required for the display screen control via DeepCreative software.
Speaking of the pump, this cooler features a 6th-generation pump from DeepCool that uses ceramic bearings and is powered by a 3-phase, 6-slot, 4-pole motor with FPC control that rotates up to 3400 RPM.

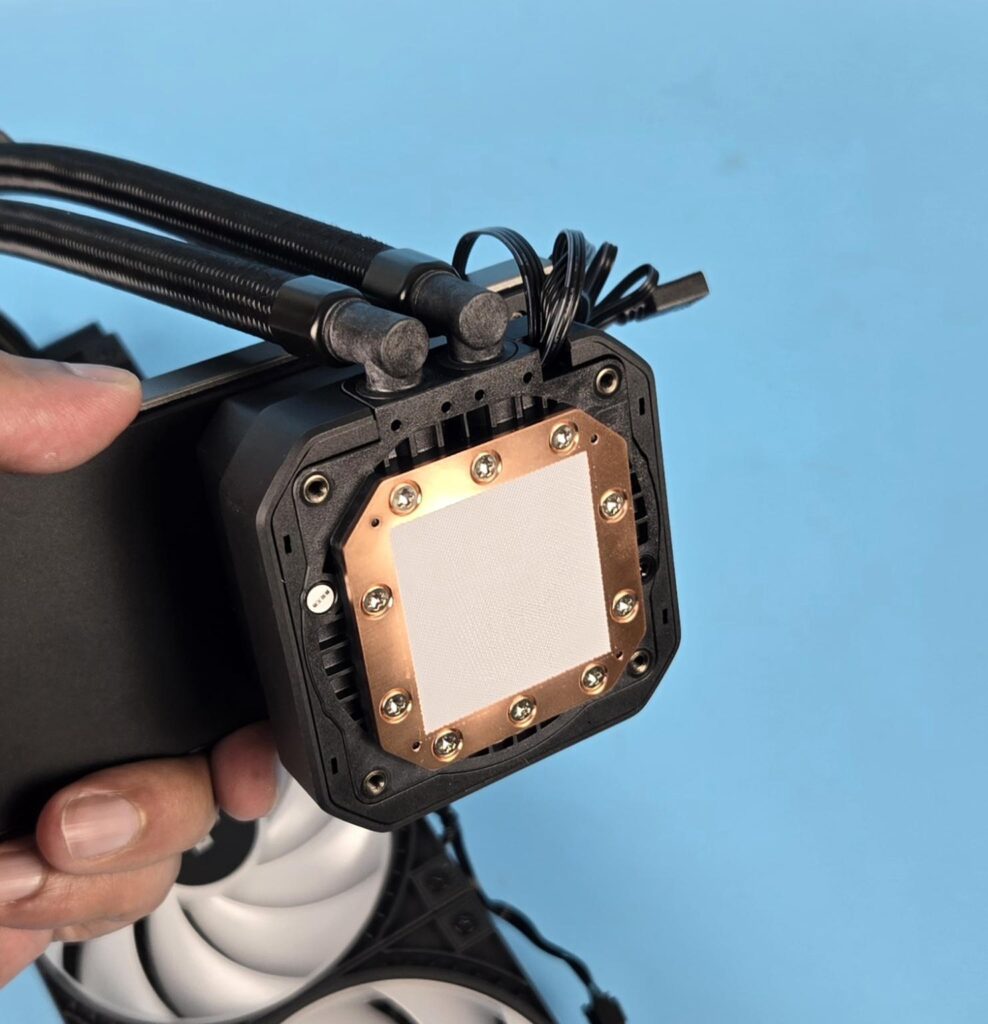

The unit base comes with pre-applied thermal paste. DeepCool has enlarged the cold plate and contact area for improved thermal efficiency.

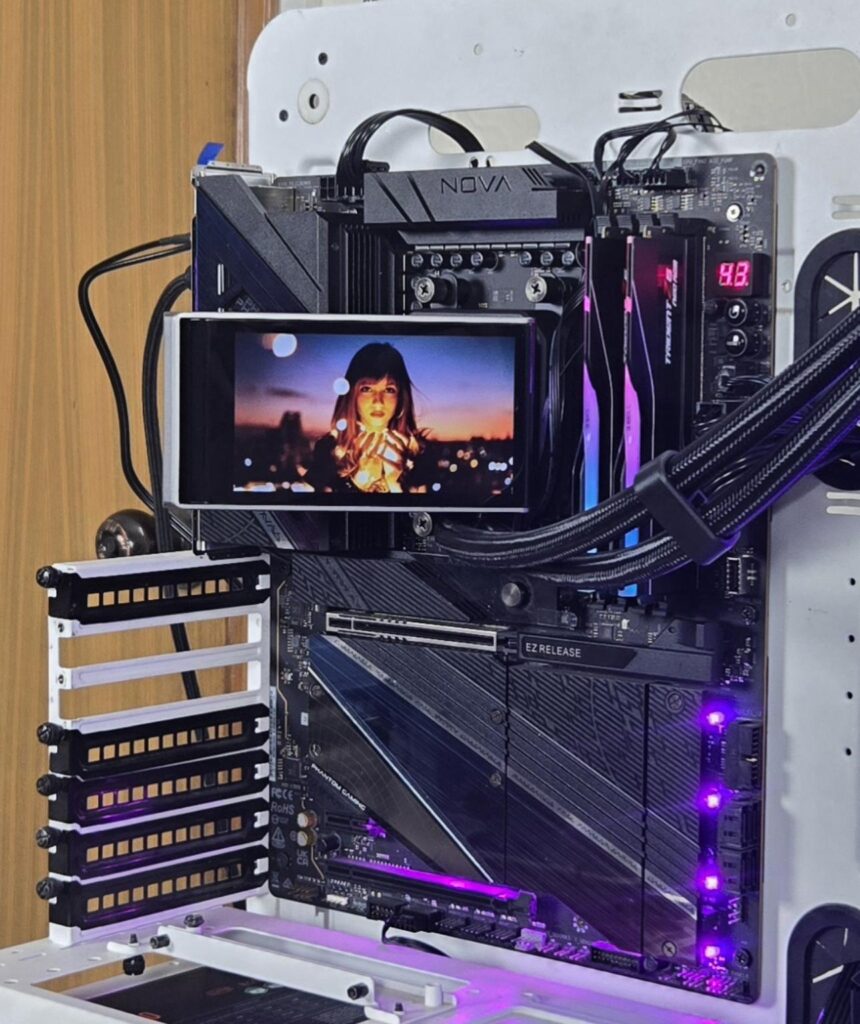

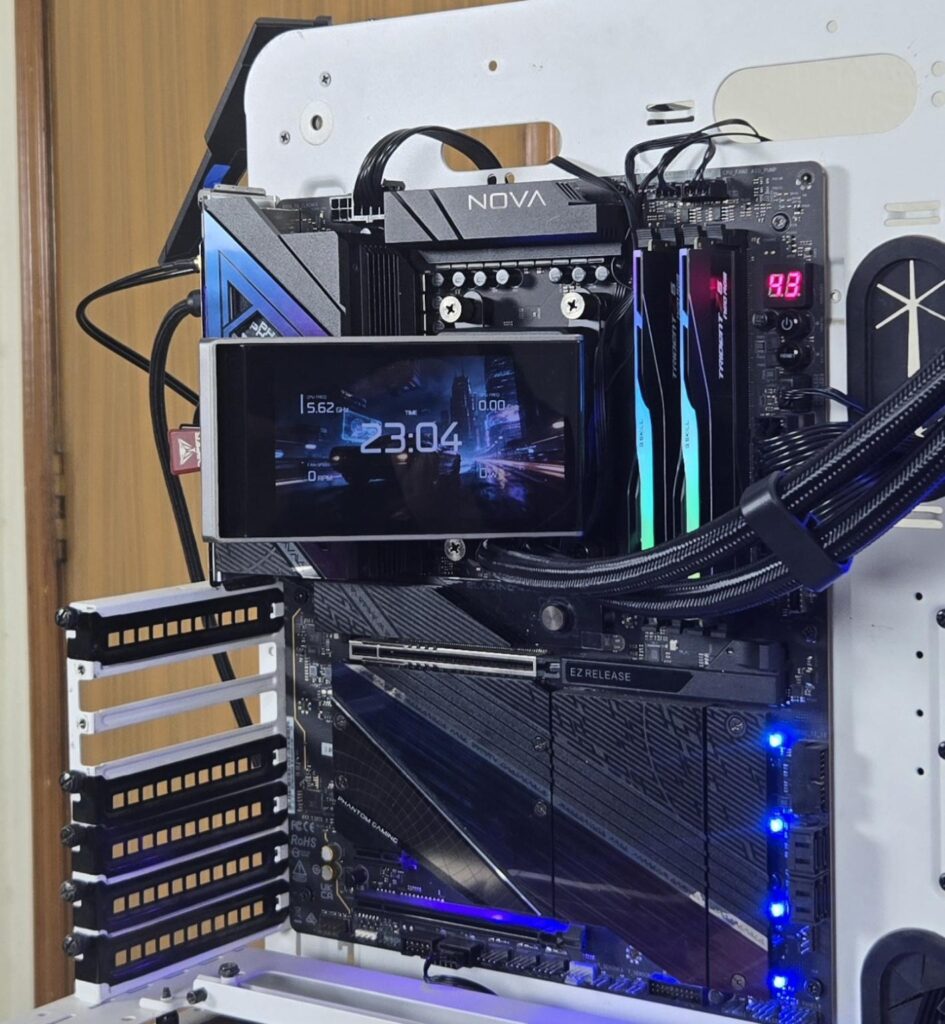

This is how the block will look with the display screen installed.
FANS

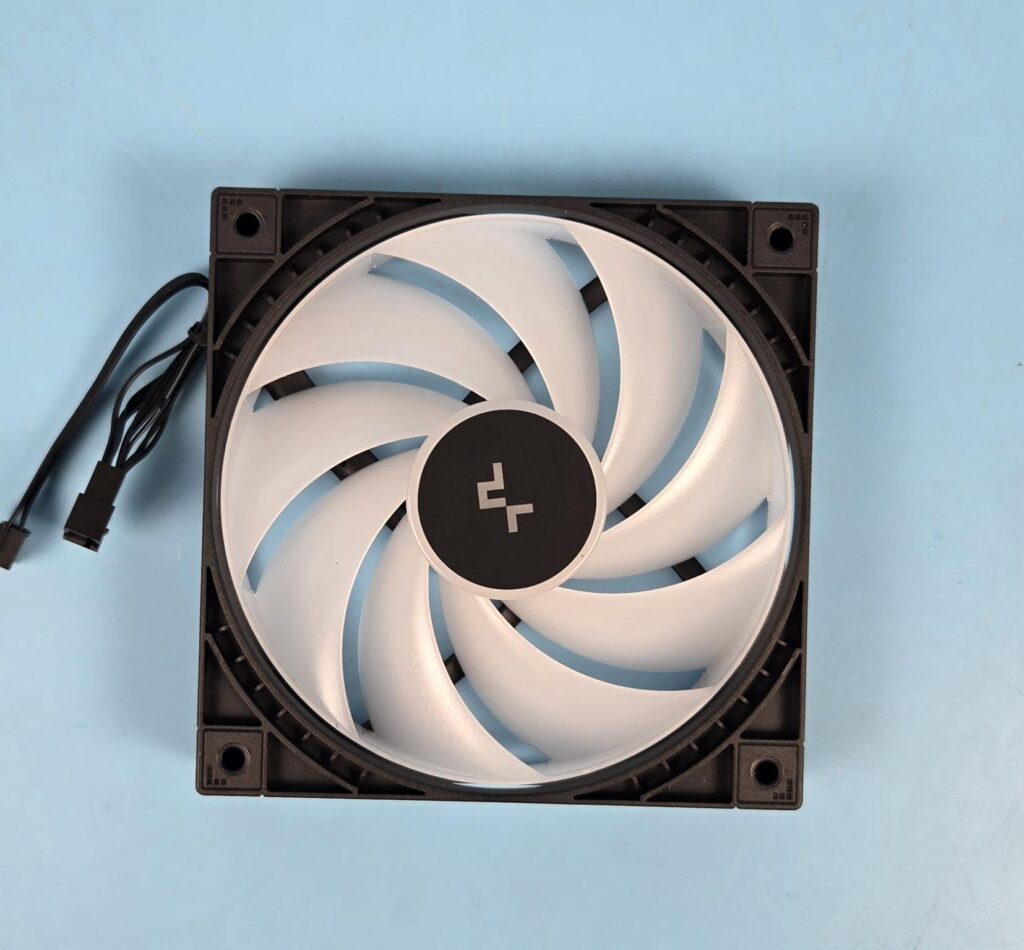

DeepCool has provided 3x high-performance RGB fans with this cooler. Each fan has 9x blades attached to the outer ring. This ring is a part of the impeller assembly and rotates along. However, there is a considerable gap between the ring and the main frame. The center has DeepCool branding. The mounting corners have DeepCool’s standard design.

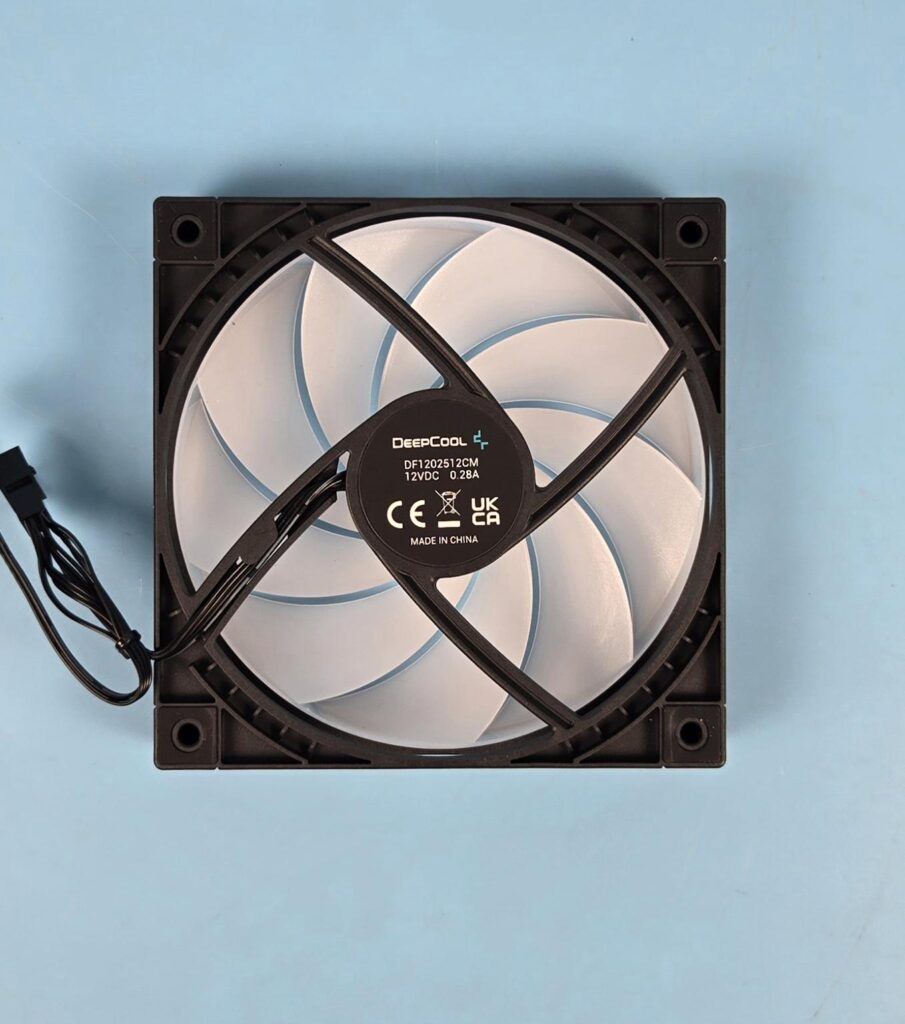

The backside of the frame has no slope design as I have seen on the Spartacus series coolers’ fans. A 4-armed assembly is visible in an angular manner, providing focused flow. These fans are made in China. They use Hydro Bearings. The fan is rated for 0.28A, taking 3.36W of power.

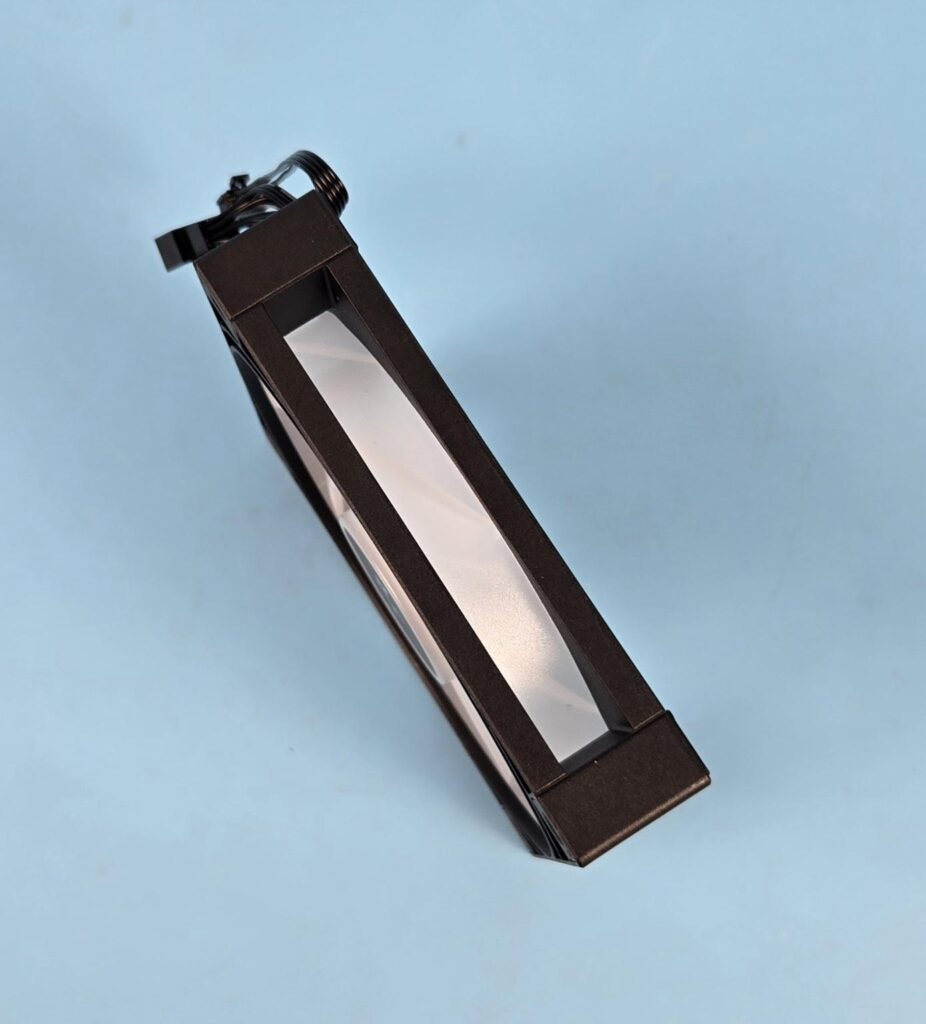

Each side of the fan has an open design showing a diffuser in what DeepCool referred to as Closed-Whel design. The frame is quite sturdy.

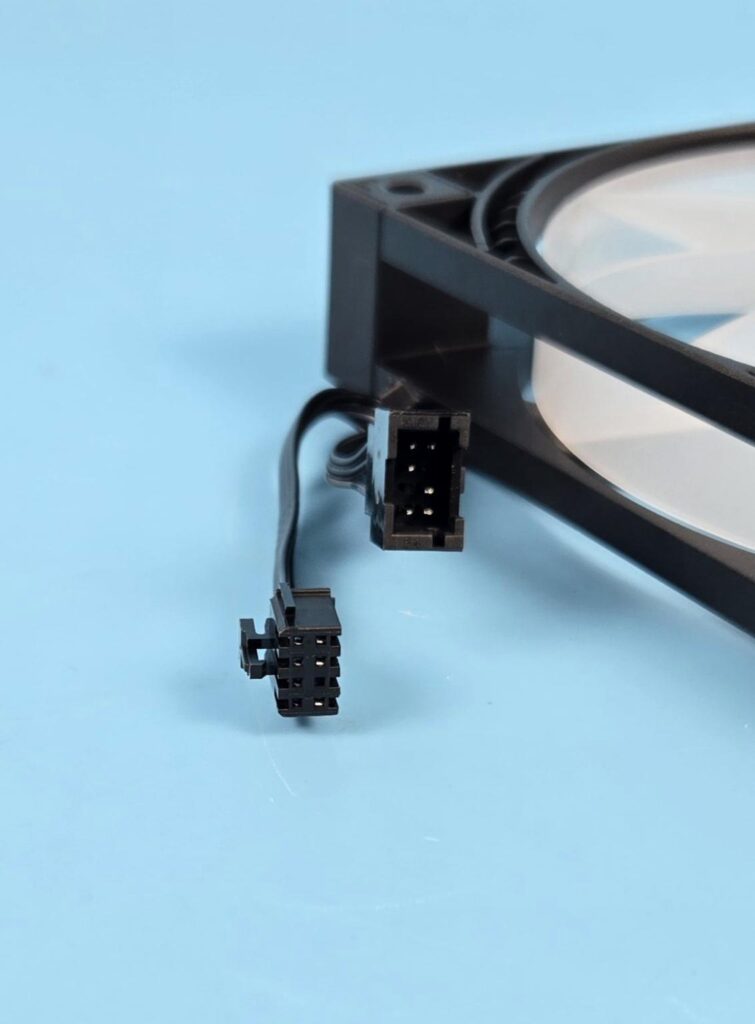

Each fan has a proprietary 8-pin connector and socket. The bundled extension cable has a standard 4-pin PWM connector, which is connected to your motherboard.
Installation
We don’t cover the installation steps. Please use the installation guide for that. We only mention observations recorded during installation.
I did not observe any issues in the installation of this cooler on the AM5 platform. It has the same mounting mechanism for AM5, which I have seen on DeepCool’s latest coolers.
Clearance
Make sure your PC Case has clearance for a 360mm AIO measuring 402x120x52mm.
Software
DeepCreative is a software that you need to download from the DeepCool website. You need to restart the PC in order for the software to pick the connected components correctly. On my first run without a restart, the software did not pick the Linker Controller.

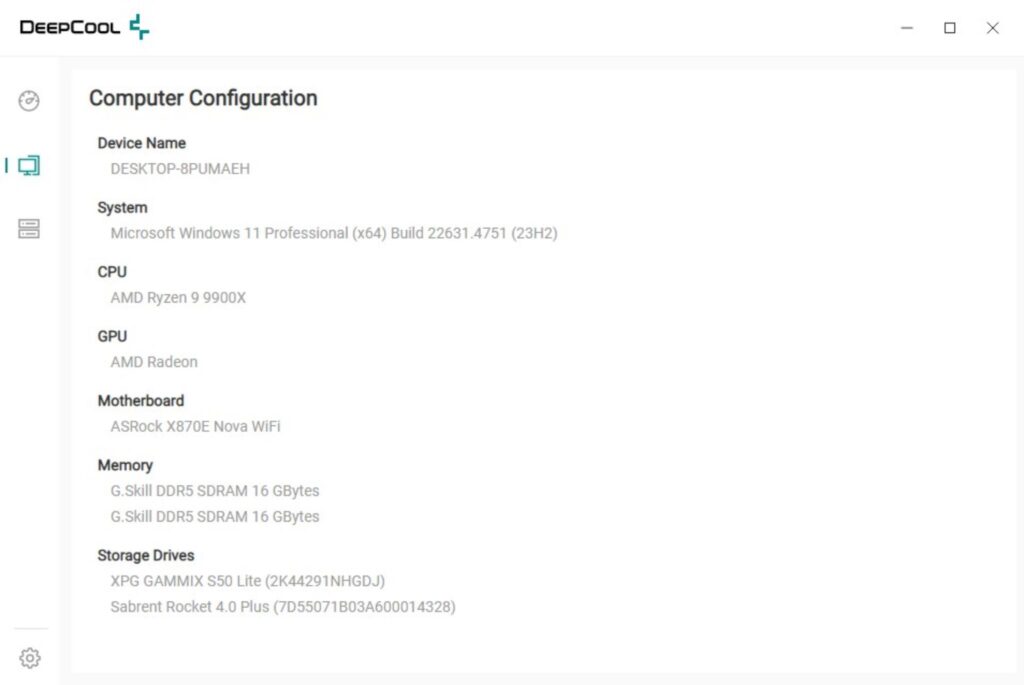

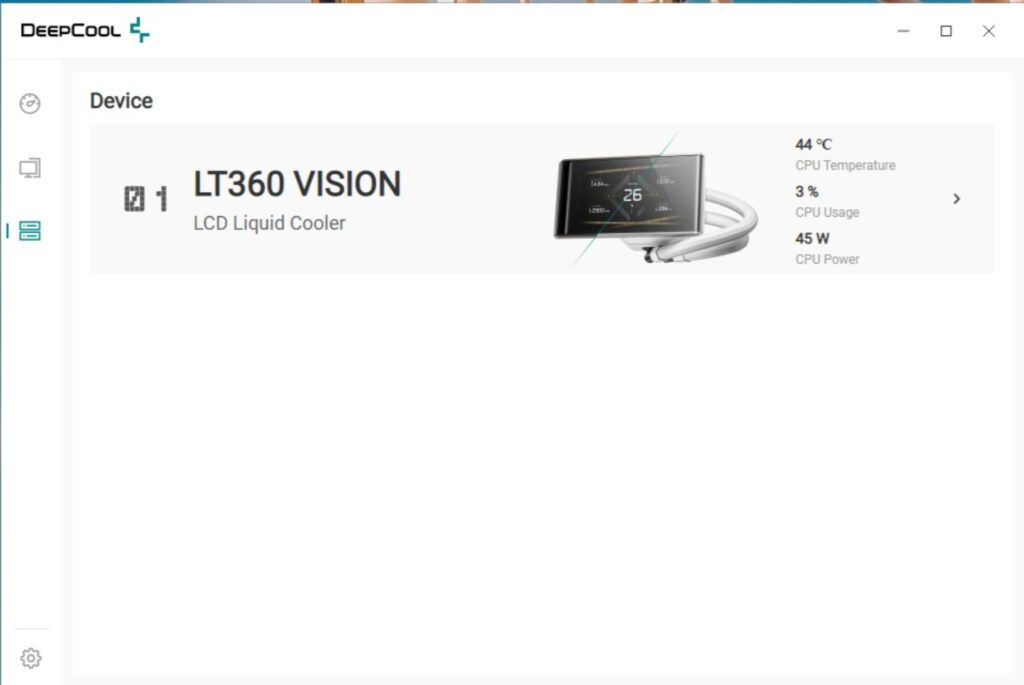

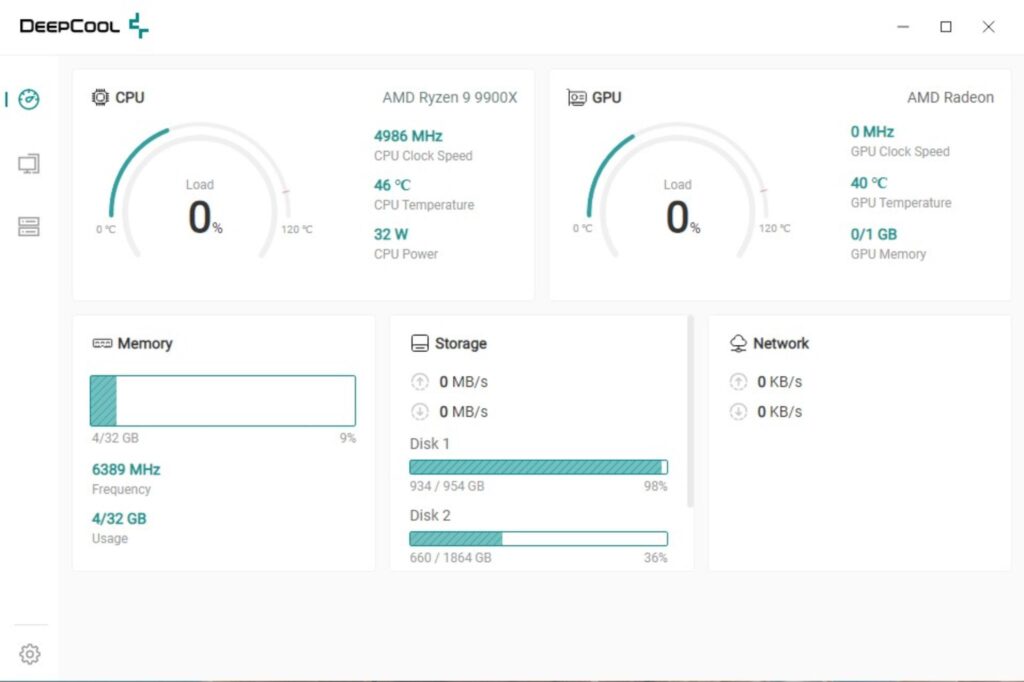

The first page shows the sensor data from PC components. The second page lists the components. You can change the temperature unit under the settings. Firmware update is also provided in this section. Under the Devices, all the compatible or enabled devices will be shown. Click on the device you want to customize.
Please note that you can’t regulate the speed of the fans and pump from the software since this cooler does not fall under the AI Cooling category from DeepCool.

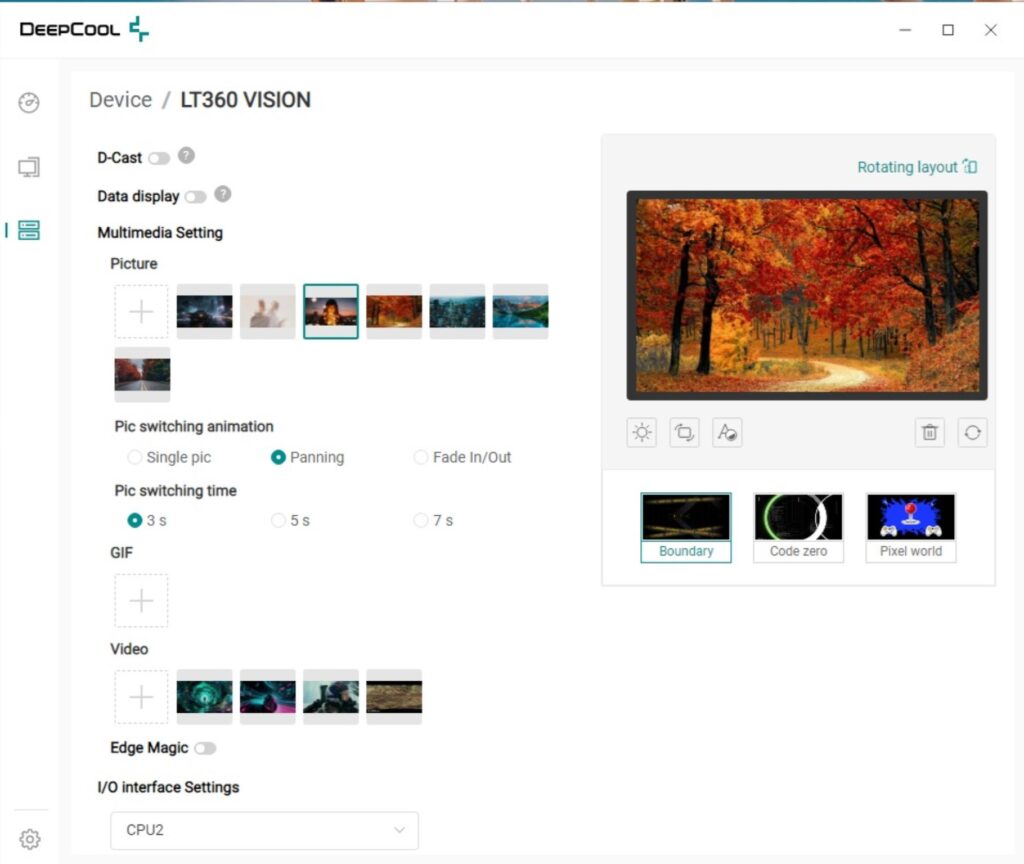

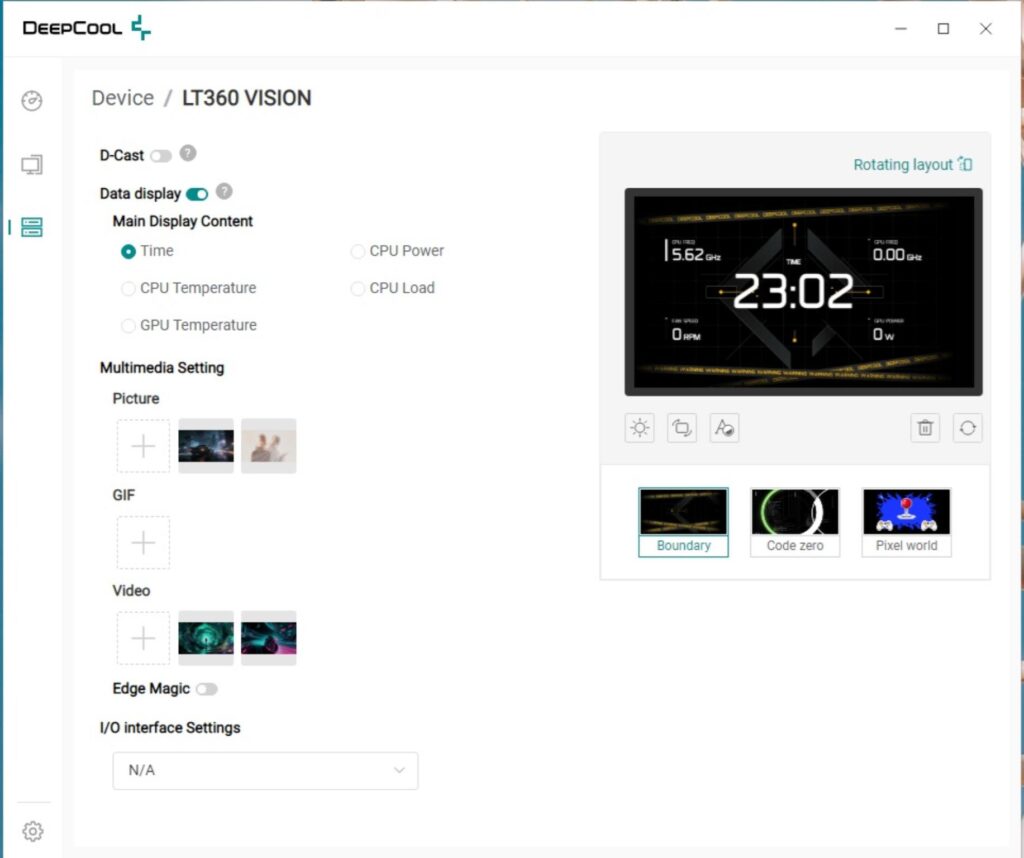

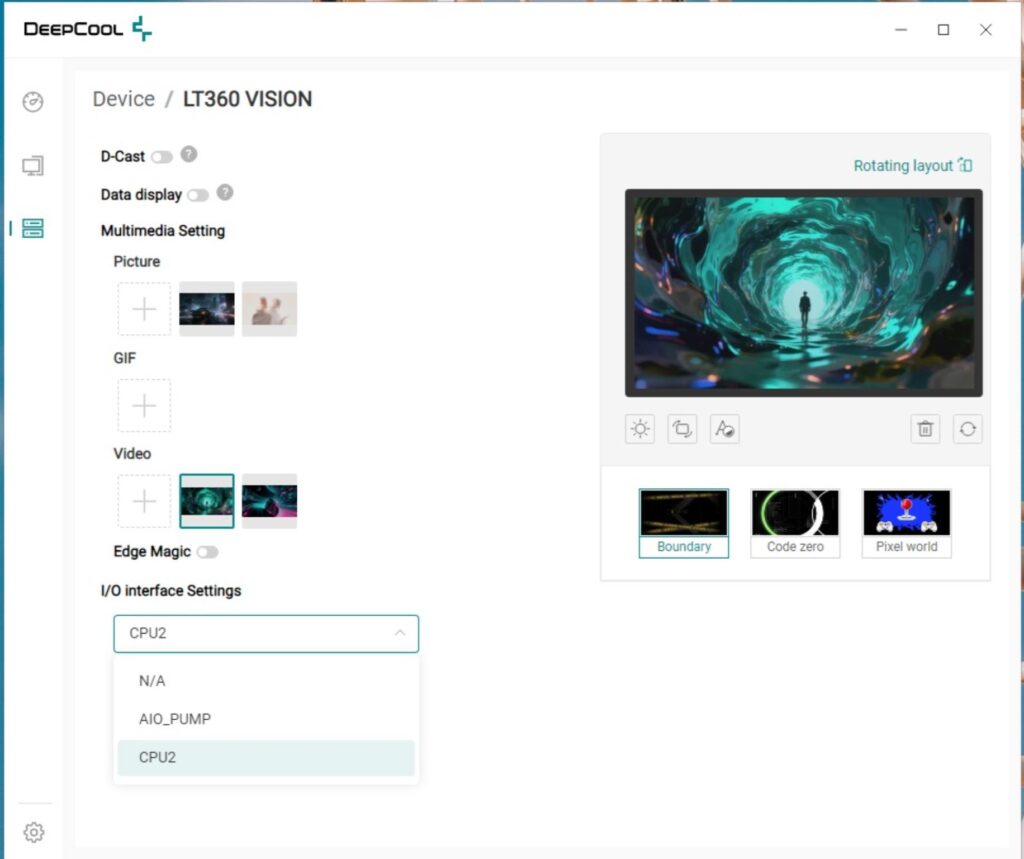

The display-related options are provided under the LT360 VISION Listing. You can customize the display screen there. You can display pictures or run videos, animations, GIFs, and can customize the sensor display.
Software provides the main categories:
- D-Cast: Extends your desktop view on the screen [I never got it to work anyway]
- Monitoring: Shows key sensor data on the screen.
- Media: Displays videos, animations, pictures, etc
Video
I recorded a simple video showing the animation on the screen.
RGB Lighting

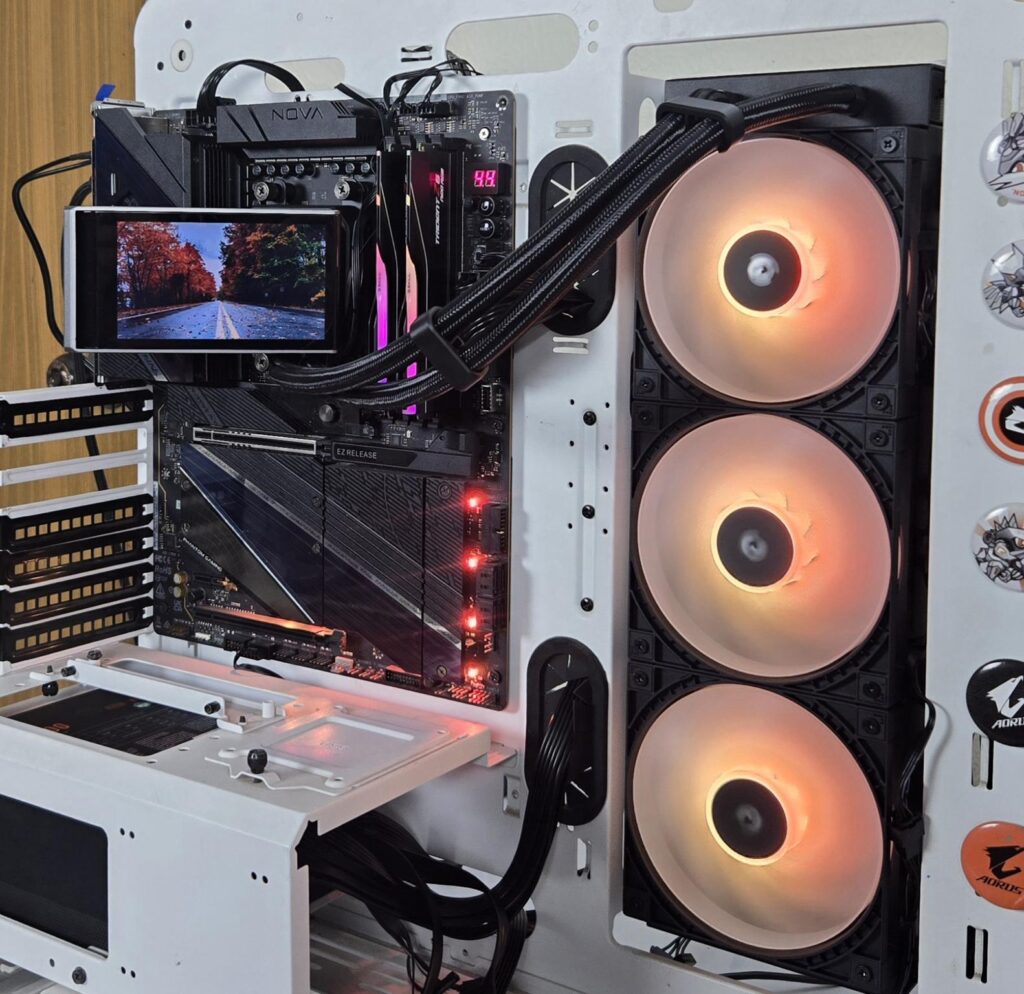

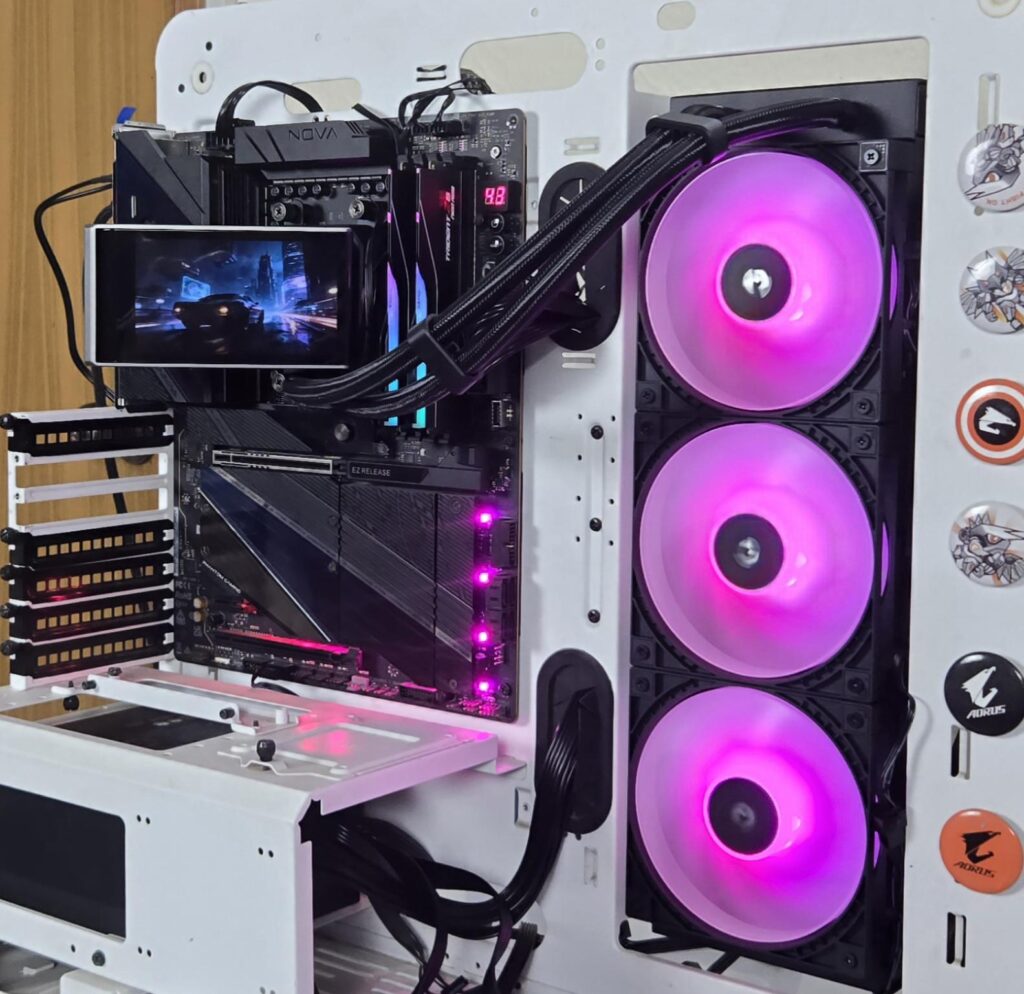

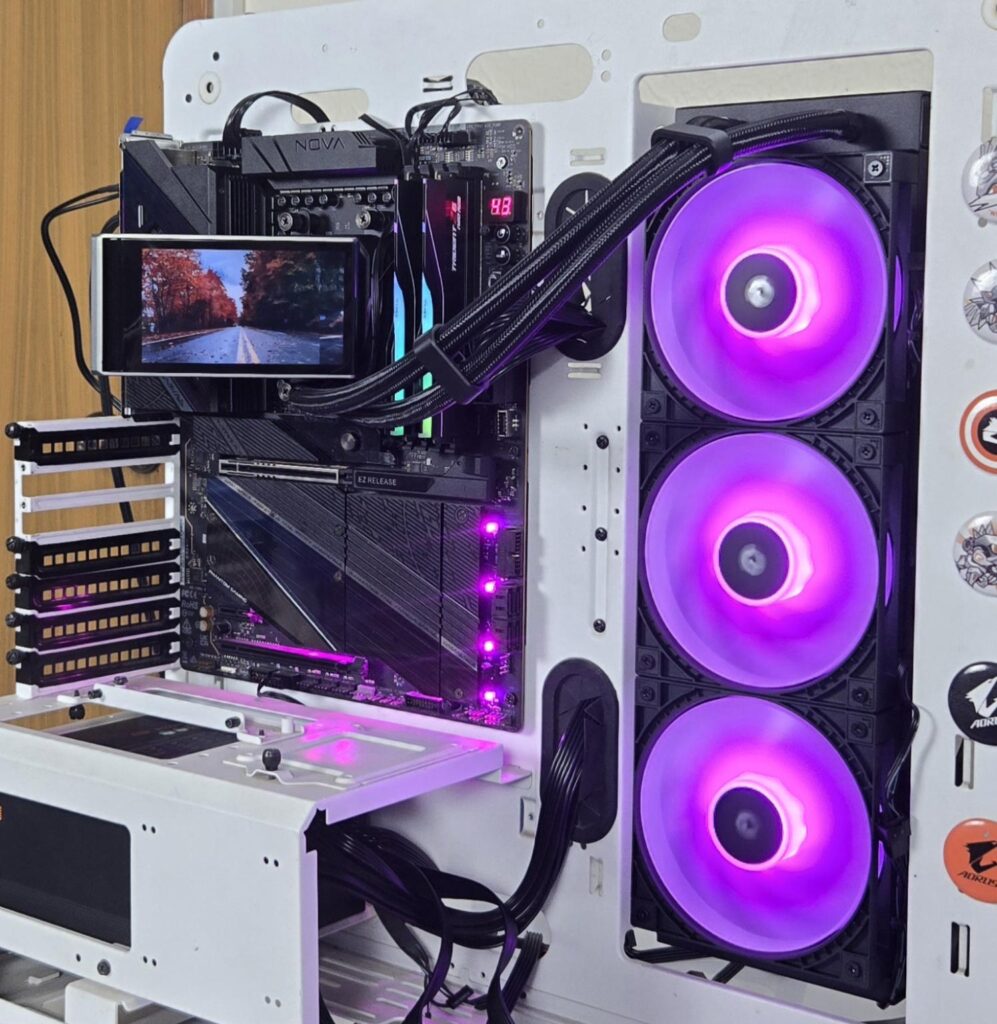

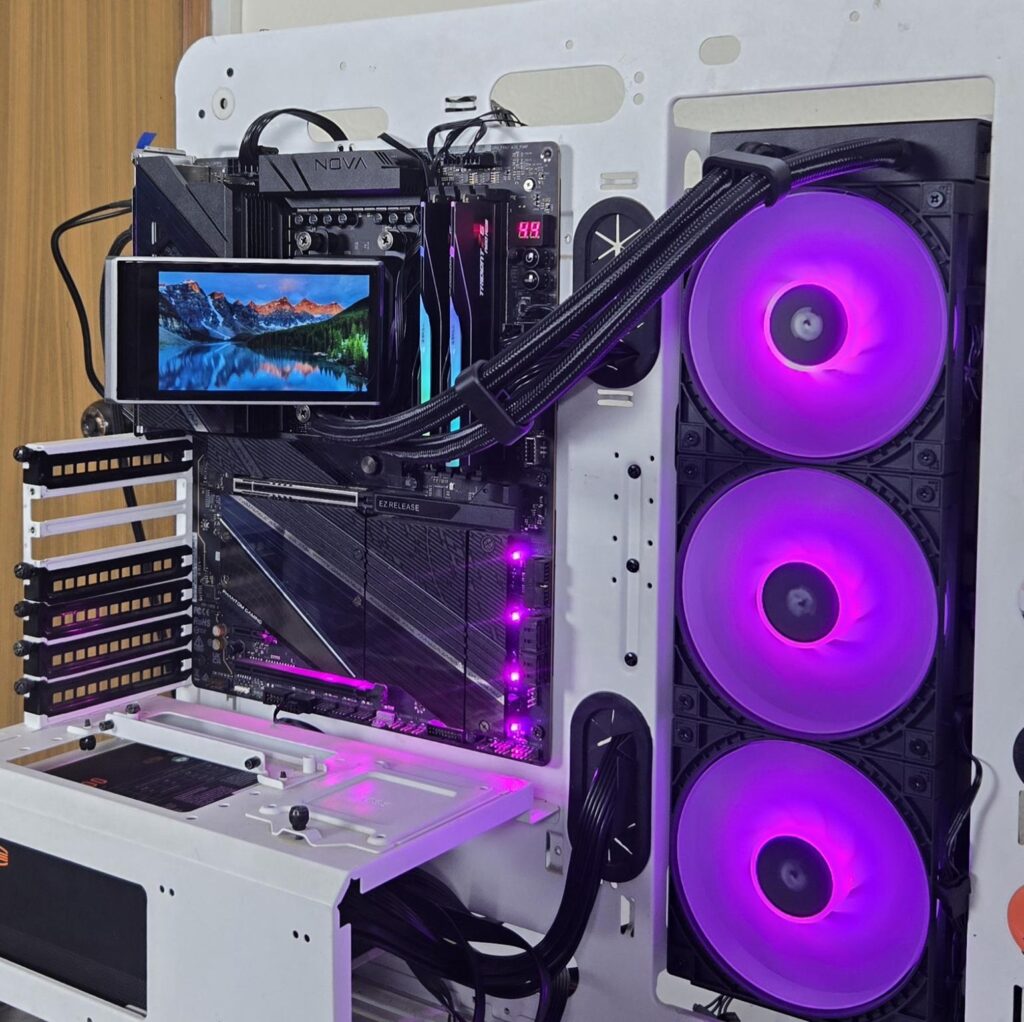

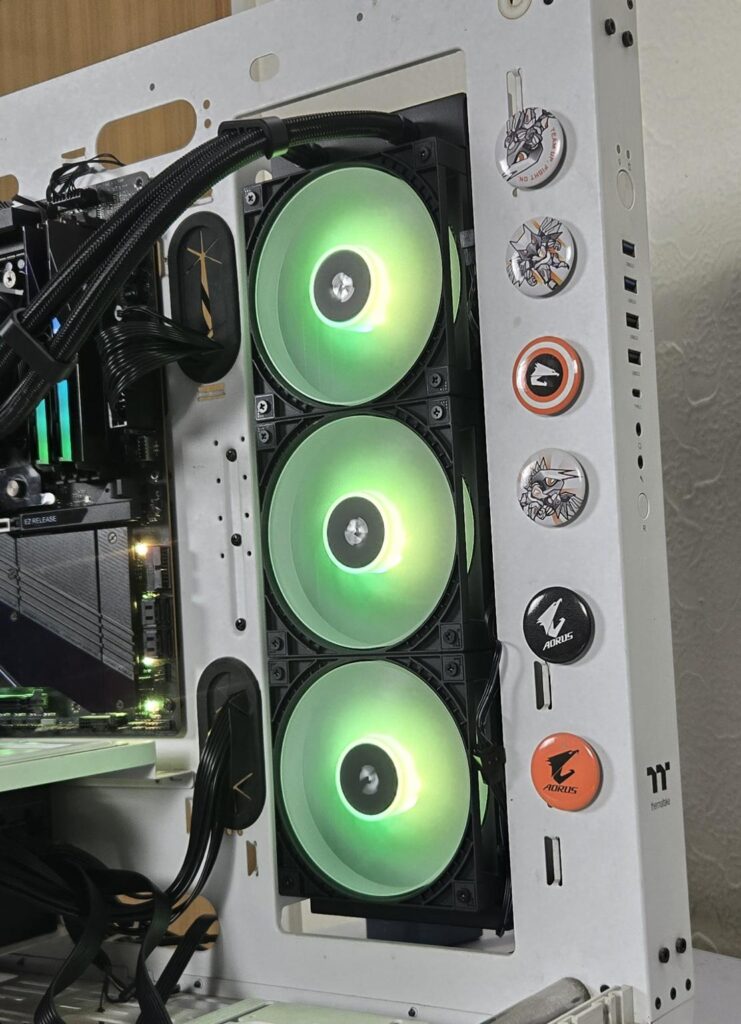

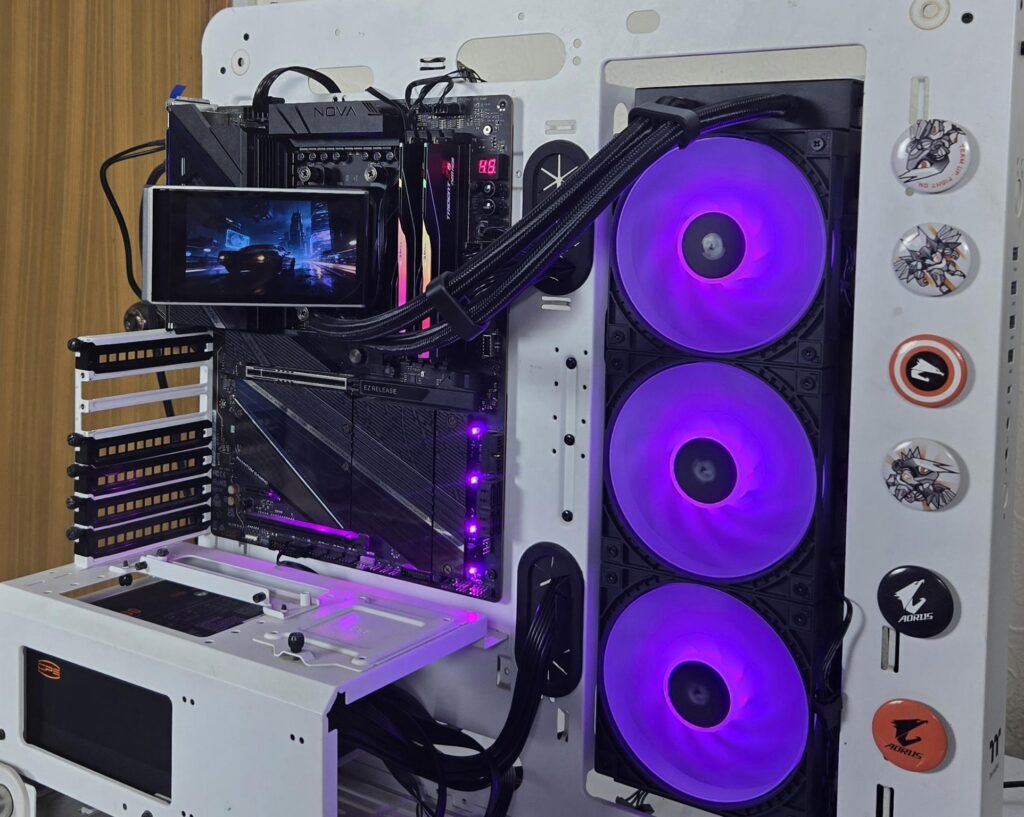

DeepCool uses a standard connector that would work with the RGB sync technology of motherboard manufacturers. Pictures are from ASRock X870E NOVA WiFi.
AMD Testing

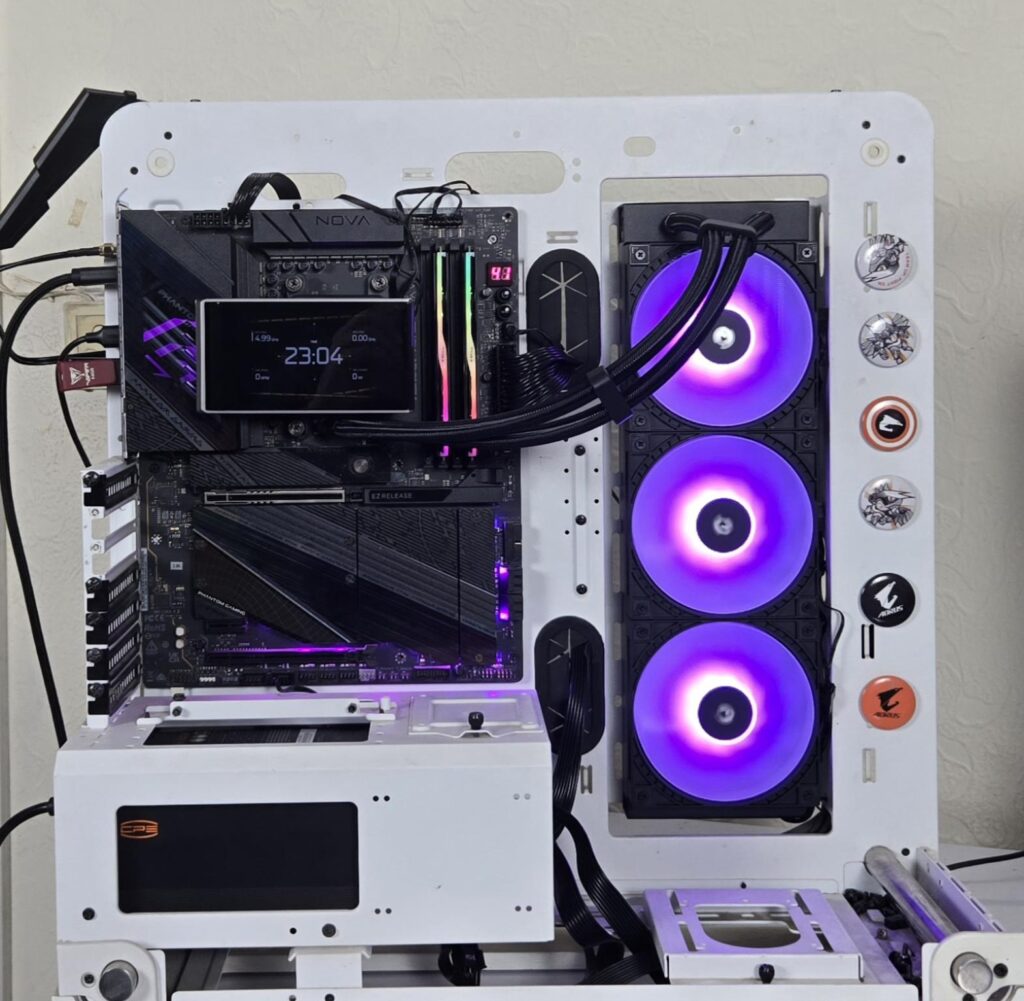

The following configuration is used for thermal testing:
- AMD Ryzen 9 9900X
- ASRock X870E NOVA WiFi
- GSkill TridentZ NEO RGB 32GB 6400MHz CL30 DDR5 kit
- ASRock Phantom Gaming RX 7600 Graphics Card for Display
- Biwin Black Opal X570 Pro 4TB NVMe SSD
- Fractal Design ION+ 2P 860W Platinum PSU
- Thermaltake Core P6 TG Snow Edition in an open frame layout
Here is the settings table for testing:
| Settings | PBO Enabled [243W] |
| Clock (MHz) | Auto |
| Voltage (V) | Auto |
| Thermal Paste | Noctua NT-H2 |
| Thermal Paste Application | Dots Method |
| Test Run Time | 30 minutes |
| Idling Time | 10 minutes |
| All Fans Speed | 100% PWM Duty Cycle |
| Pump Speed | |
| Stress Software | CINEBENCH R23.2 |
| Monitoring Software | HWINFO64 |
I am reporting absolute temperature in the graph because the room temperature was at 22°C throughout the day. The testing is done on an open-air bench system. Once inside the chassis, the temperatures are expected to rise and would largely depend upon the optimal airflow inside the chassis.

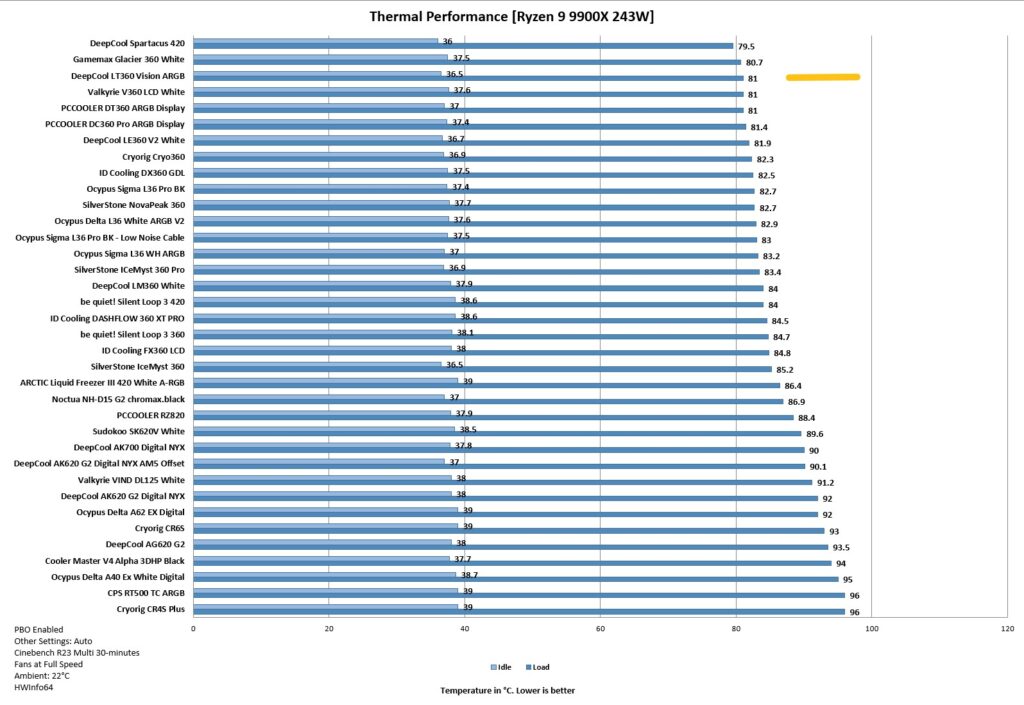

Result
The LT360 Vision ARGB offers a top-notch cooling performance, and its noise level is also good, making it quite an efficient noise-to-thermal cooler on the market.
Conclusion
DeepCool has released a new cooler named LT360 Vision aRGB. The word Vision indicates a display screen. This cooler has a 4.5” IPS screen with 854×480 resolution. I am not sure about the polling rate of the screen. This move is clearly strategically aligned with the current trend in the industry, where many manufacturers carry large screen-enabled liquid coolers. Some even have curved display screens. The salient feature of this screen, besides its crisp display, is a 90° tilt allowing the user to rotate the screen so that they can see the visuals in full regardless of the placement orientation of the PC Case on the desk.
This cooler is available in black and white in a 360mm size. It is compatible with Intel LGA1700/1851 and AMD AM4/AM5 sockets. Three 120mm ARGB fans come pre-installed and pre-wired over the radiator. The radiator has an overall dimension of 402x120x52mm with fans. It has 12 channels for coolant flow with a fin density of 20 FPI. Manufacturer uses rubber-tubing which runs to 410mm in length and has a black color nylon braided sleeve mesh. Needless to say, this cooler also features Anti-Leak technology.
The display screen is integrated into the pump housing. The pump itself is a sixth-generation design that has a 3-phase, 6-slot, and 4-pole motor with FOC control. It is rated for up to 3400 RPM. It is PWM regulated. In addition, DeepCool has provided a 3-sided ARGB lighting on the pump housing for which standard ARGB connectors are provided. A USB 2.0 connector is also provided for the software-based screen display. DeepCreative software is provided for customization.
Each fan is rated for 500 to 2500 RPM ± 10%. Airflow rating is 75.33 CFM, and air pressure rating is 2.41 mmAq. The noise level is rated at ≤ 33.66 dB(A). These fans use Hydro Bearings. The fan’s power draw is 3.36W. Pump’s power draw is 3.48W.
DeepCool has provided its standard mounting kit with this cooler. It is clear that the offset Intel mounting kit is only offered with the flagship Spartacus coolers. The installation of this cooler on the AMD AM5 socket is the same as on DeepCool’s recent coolers. It is a straightforward task but requires 14 items.
This cooler has an MSRP of USD 139.99, and it comes with a 5-year warranty. This cooler packs a good performance with excellent noise-to-thermal efficiency. The large display screen with ARGB fans provides excellent augmentation.
Pros:
- Thermal Performance
- 4.5” Large Display Screen
- A-RGB lighting
- New 6th Gen Pump
- 120mm ARGB Fans
- Simplified Cable Management
- Compatible with Intel LGA1700/1851 sockets
- Compatible with AMD AM4/AM5 sockets
- Noise
- Warranty
- Price
Cons:
- None
